By following only a few steps, you can estimate the required number of speakers in an optimal way for your project.
Lineup
VC8B / VC8WCeiling speaker
2-way system with 8-inch woofer and 1-inch tweeter
- Engineered for optimum BGM and voice reproduction
- Low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Built-in carrying band increases safety during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 4.2 kg (9.3 lbs), Ø325 x D122 mm (Ø12-3/4” x D4-6/8”)
- Single unit package

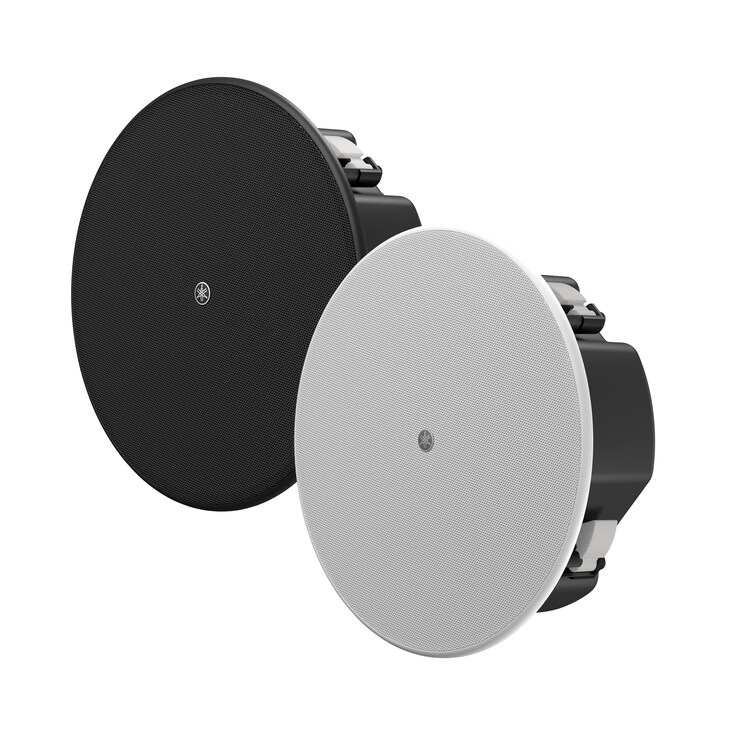

VC6B / VC6WCeiling speaker
2-way system with 6.5-inch woofer and 0.8-inch tweeter
- Engineered for optimum BGM and voice reproduction
- Low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Built-in carrying band increases safety during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 3.3 kg (7.3 lbs), Ø286 x D106 mm (Ø11-2/8” x D4-1/8”)
- Single unit package

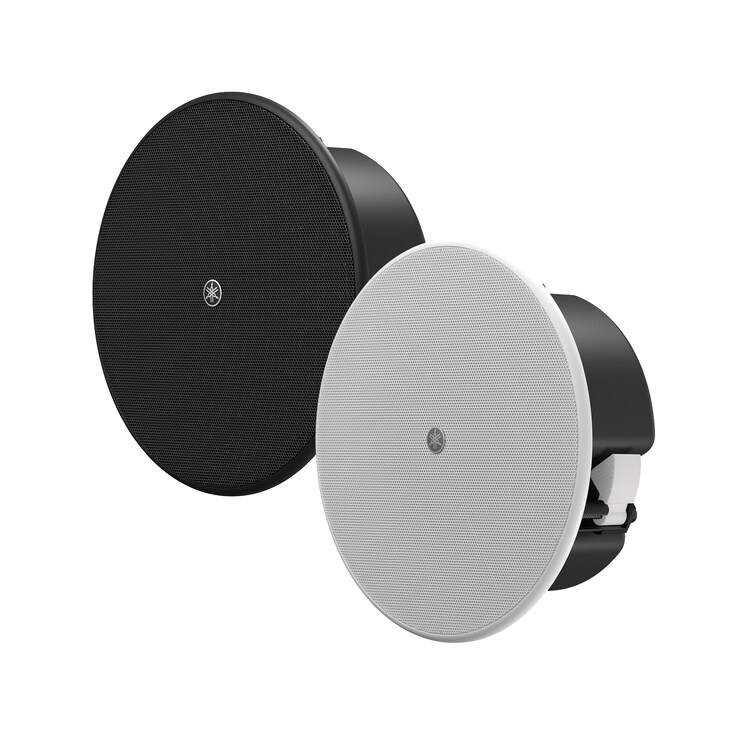

VC4B / VC4WCeiling speaker
2-way system with 4-inch woofer and 0.8-inch tweeter
- Engineered for optimum BGM and voice reproduction
- Low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Built-in carrying band increases safety during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 2.1 kg (4.6 lbs), Ø225 x D95 mm (Ø8-7/8” x D3-3/4”)
- Single unit package

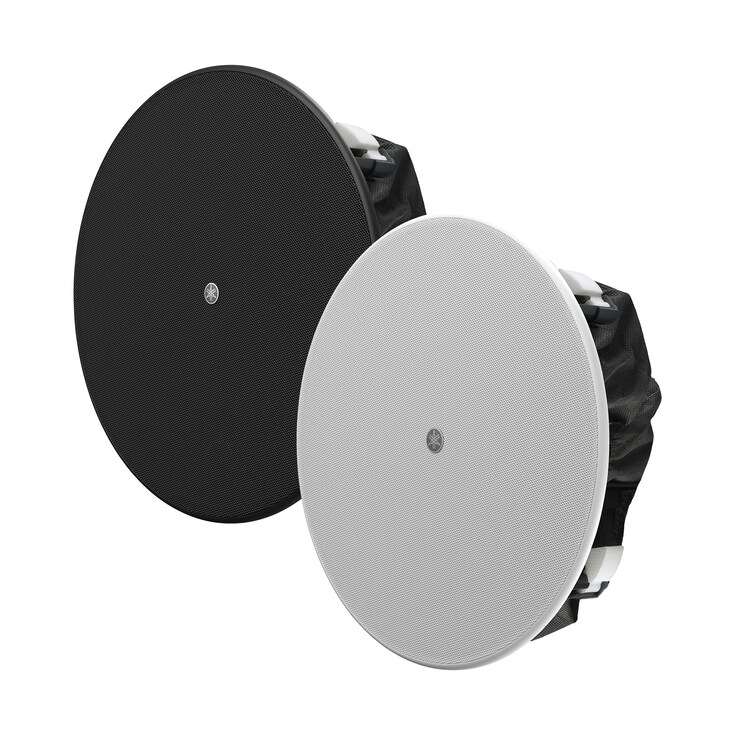

VC8NB / VC8NWCeiling speaker
2-way system with 8-inch woofer and 1-inch tweeter, no back can
- Engineered for optimum BGM and voice reproduction
- No back can low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 2.8 kg (6.2 lbs), Ø325 x D131 mm (Ø12-3/4” x D5-1/8”)
- Single unit package

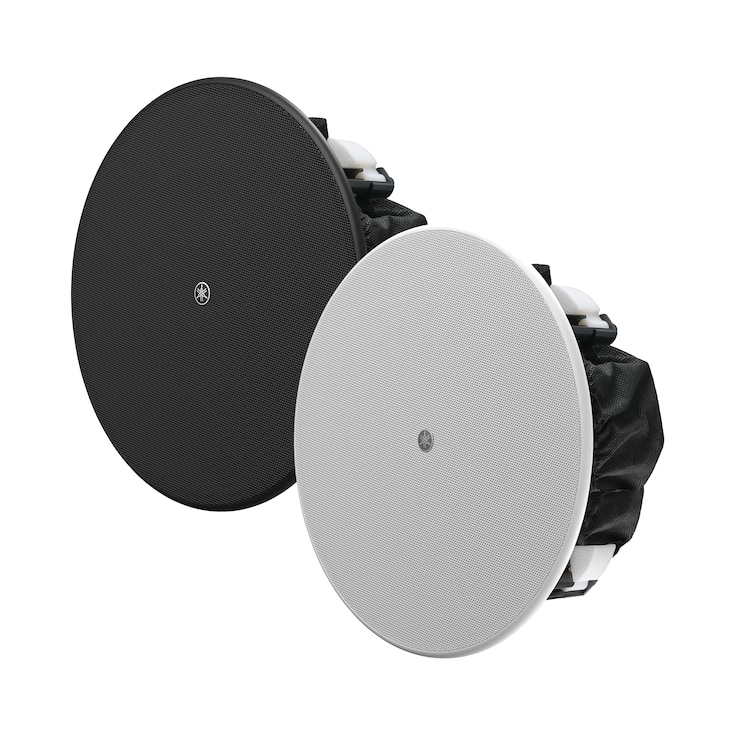

VC6NB / VC6NWCeiling speaker
2-way system with 6.5-inch woofer and 0.8-inch tweeter, no back can
- Engineered for optimum BGM and voice reproduction
- No back can low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 2.3 kg (5.1 lbs), Ø286 x D114 mm (Ø11-2/8” x D4-4/8”)
- Single unit package

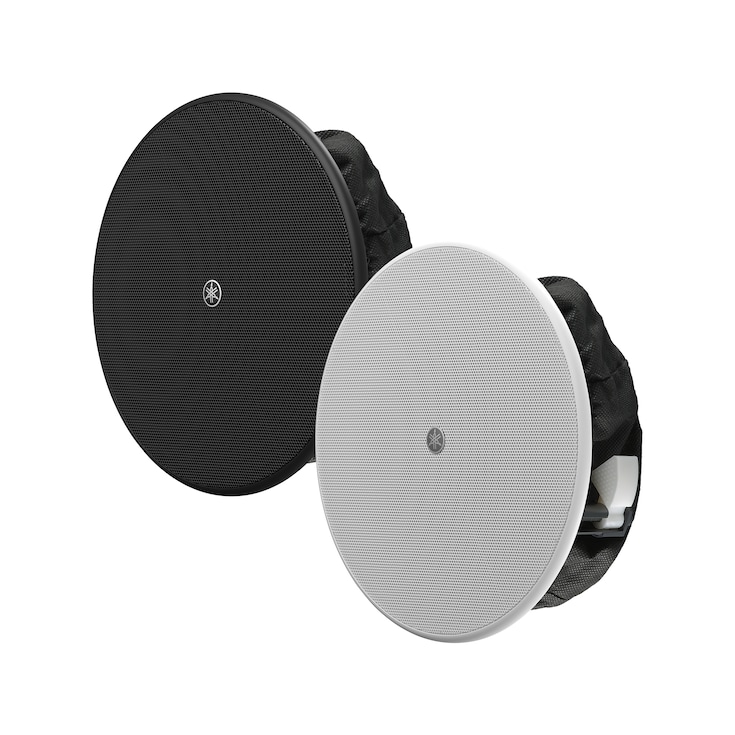

VC4NB / VC4NWCeiling speaker
2-way system with 4-inch woofer and 0.8-inch tweeter, no back can
- Engineered for optimum BGM and voice reproduction
- No back can low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 1.4 kg (3.1 lbs), Ø225 x D103 mm (Ø8-7/8” x D4-1/16”)
- Single unit package

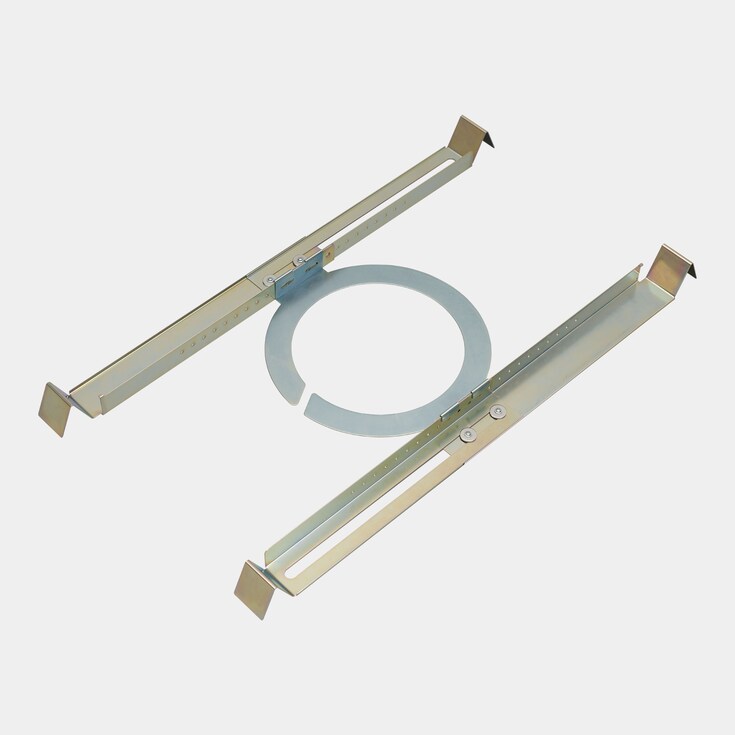

AB-C2Speaker accessory
C-ring + Tile Rail kit for VXC2F, VC4B, VC4W
- Optional use for VXC2F, VC4B, VC4W in-ceiling installation
- The other VXC series F models (VXC5F, VXC3F) come with O-ring + Tile Rail kit
Features

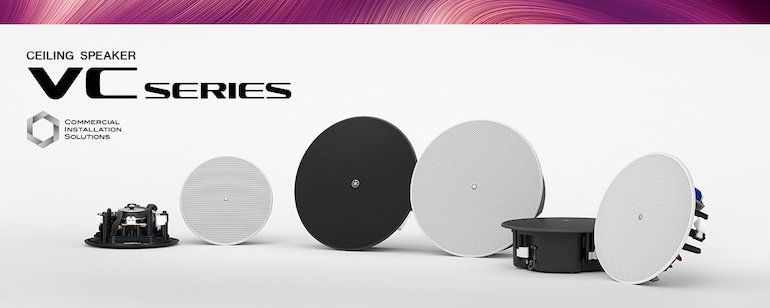

Premium Sounding Compact Ceiling Speakers at a Non-Premium Price.
VC series ceiling speakers for commercial installations deliver excellent sound quality at a price point traditionally reserved for economy speakers. A total of six models, three with back cans and three without, feature elegant low-profile designs that can be install easily even in limited ceiling or wall spaces. Large mounting clamps with non-slip treads ensure secure mounting.
Recommended Applications
Wide coverage area with many speakers installed, such as shopping mall, office buildings, restaurant, healthcare facilities, and transportation terminals.
-
Shopping mall
-
Meeting space
-
Restaurant

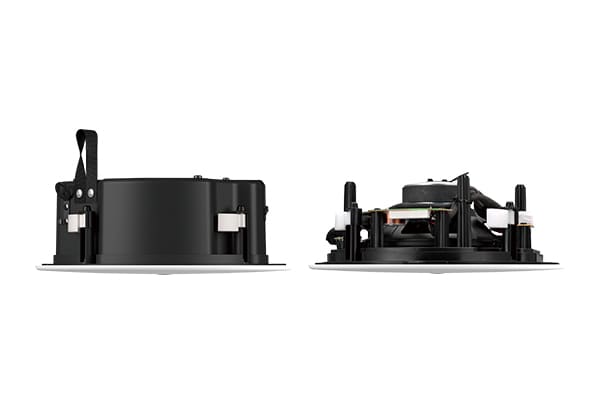

Versatile lineup for a variety of requirements
Six models, three with back cans and three without, offer compatibility with a wide range of installation needs. Models that do not have back cans are more lightweight and budget friendly, and include back covers that protect the speaker unit and circuitry from dust and moisture.

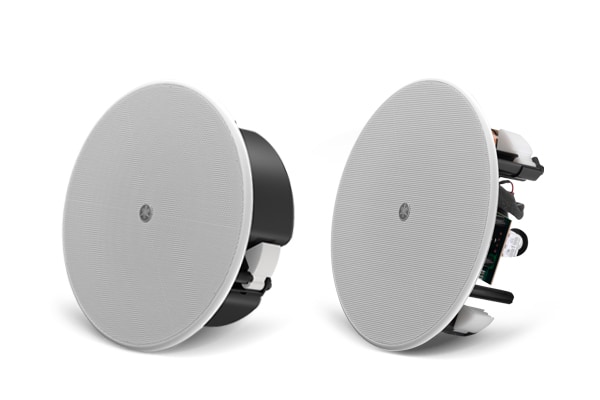

Extremely Low-profile
Reduced physical depth allows installation in ceilings and walls where space is limited.

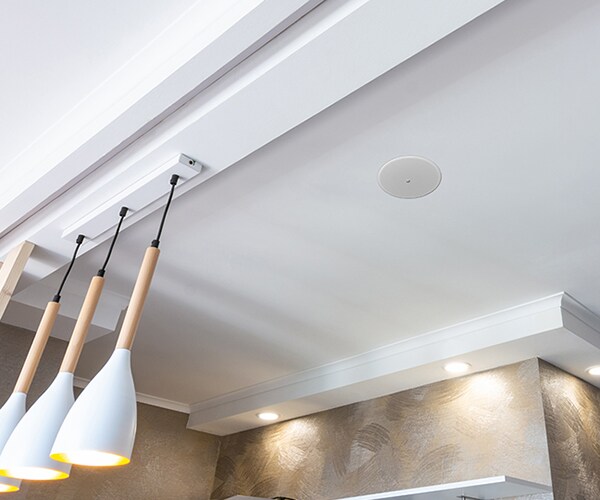

Elegant design blends with any décor
Several aspects of VC Series design reflect a strong emphasis on functionality as well as aesthetics.
Shallow, lightweight, and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed without spoiling interior design.
High-impedance and low-impedance supported
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
So not only can a large number of speakers be installed with a high-impedance connection, but also a large number of speakers can be installed with a low-impedance connection due to its 16-ohm capacity. And the need for additional unit is minimized and systems can be designed to ideally meet the requirements of any application.
Safer, Faster Installation
The VC Series ceiling speakers feature low profile back cans, light weight, and mechanical features that contribute to significantly safer, faster installation. In addition, large mounting clamps with non-slip treads ensure secure mounting.
-

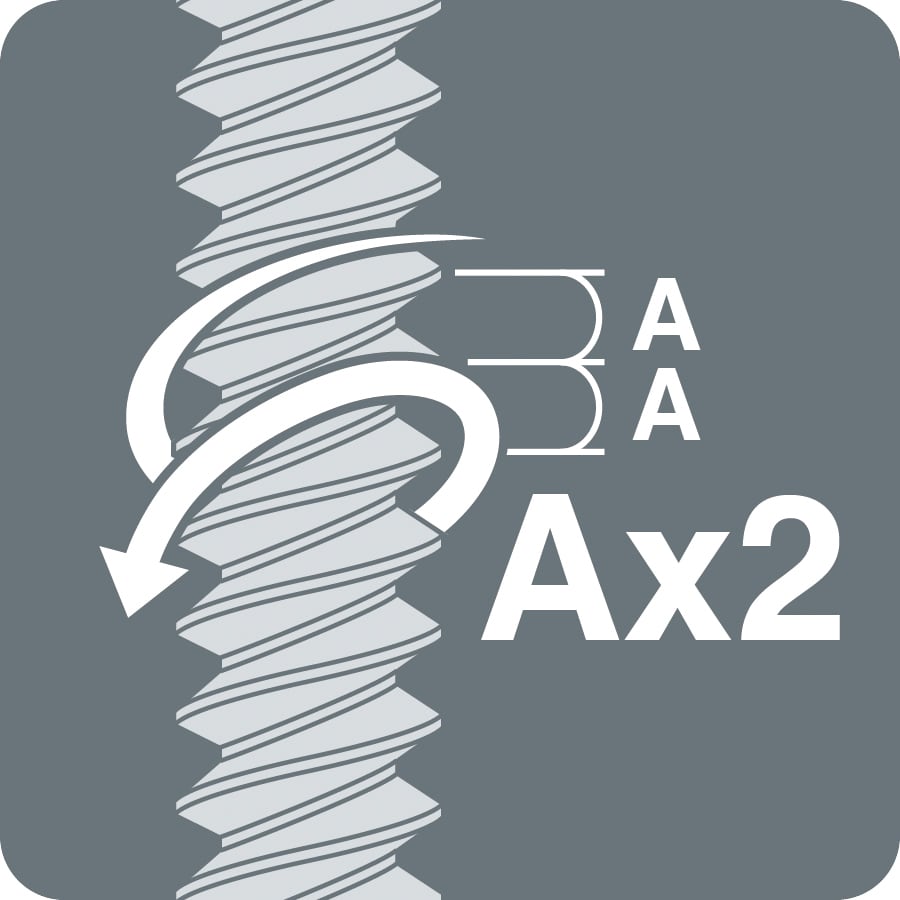

Fast
Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.
-

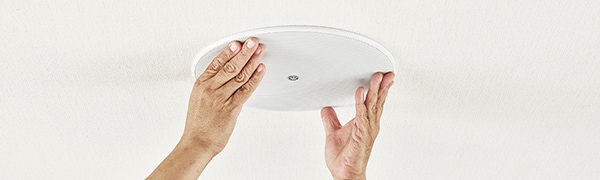

Paintable
The supplied grilles can be painted any color to match interior decor.
-
Lightweight
Reduced weight increases installation flexibility while lessening the burden on installation personnel.
-
Portable
A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
* VC8B, VC8W, VC6B, VC6W, VC4B, VC4W only
-

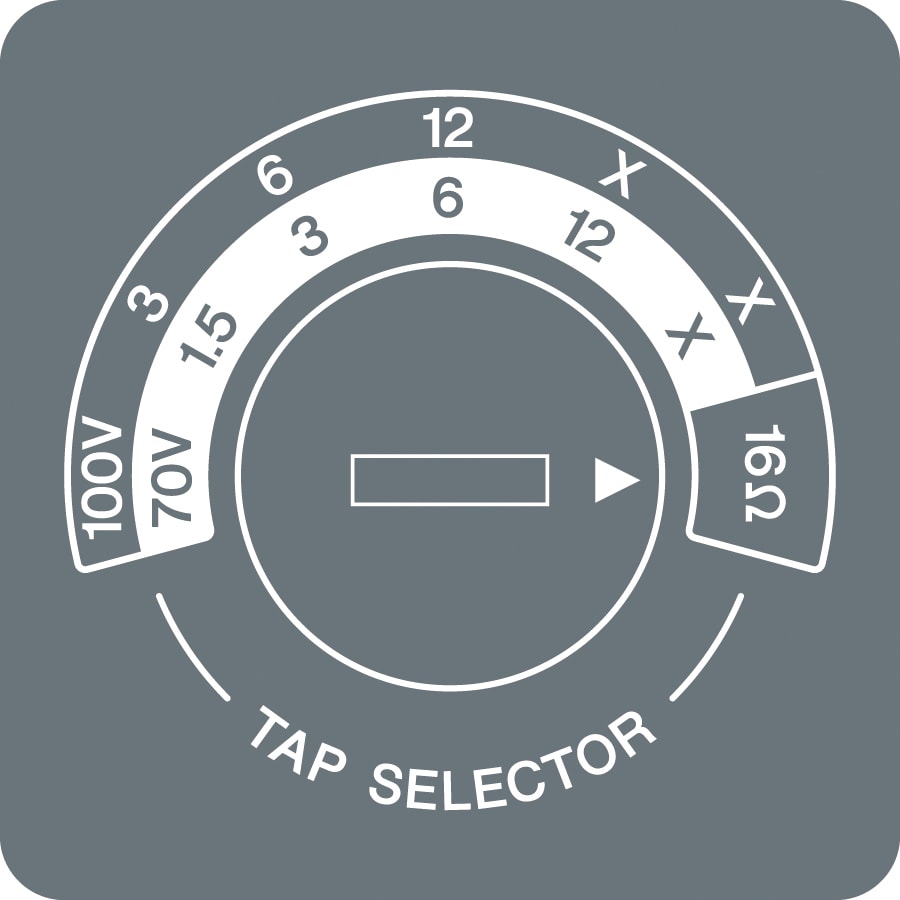

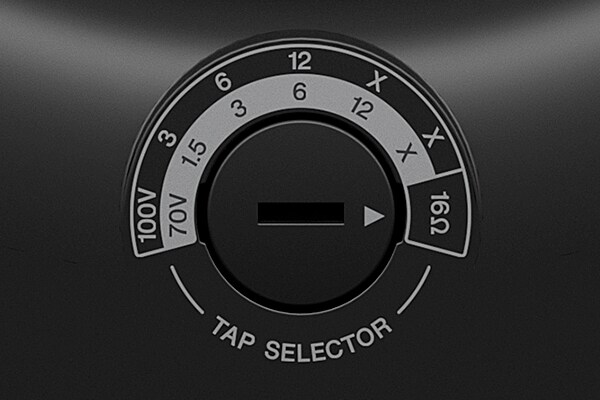

Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
Related Software
Systems

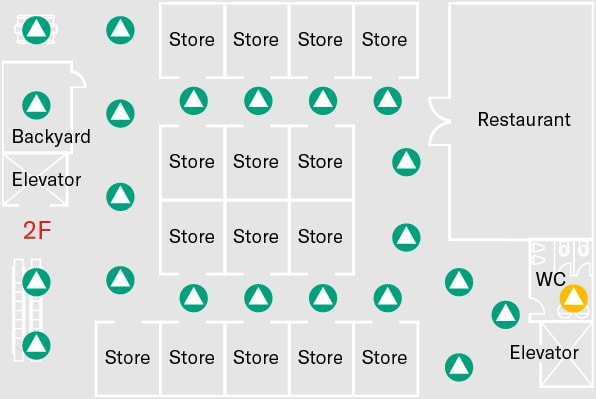

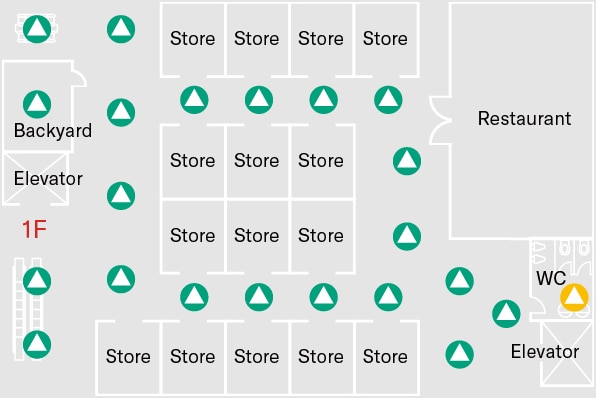

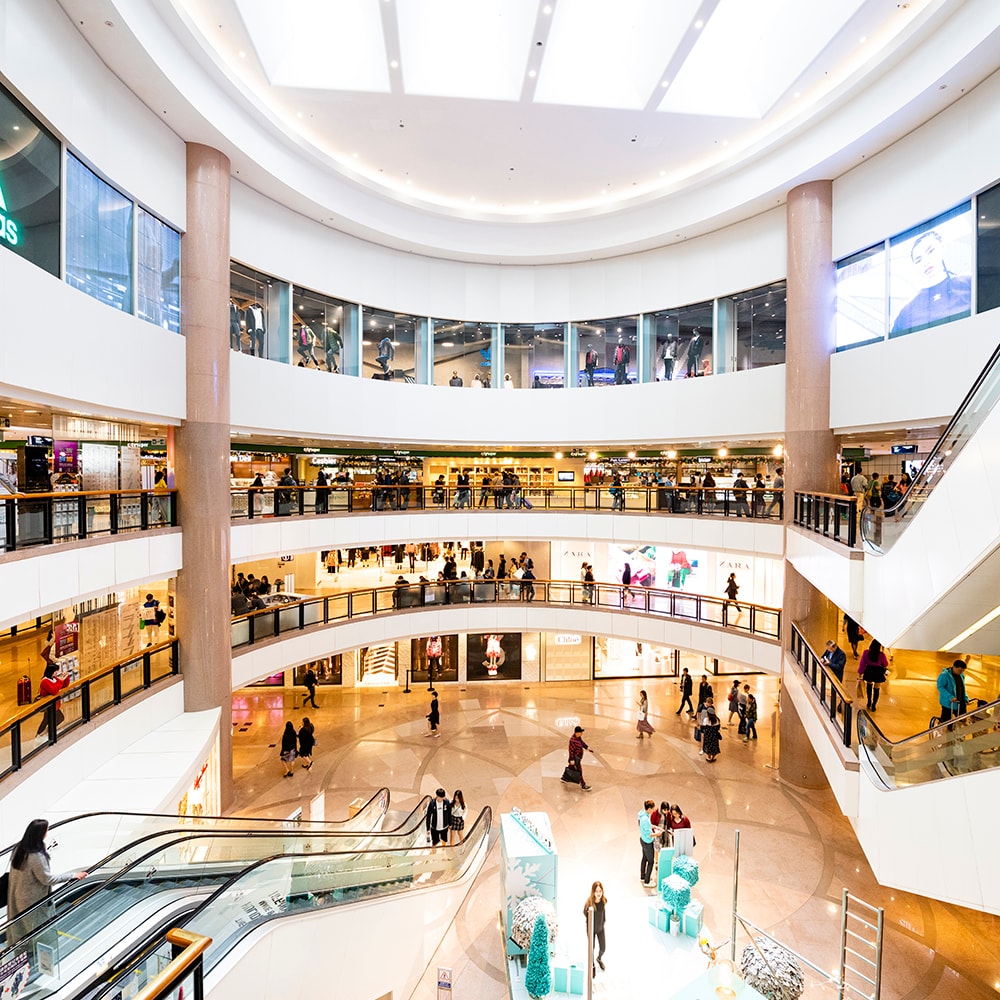

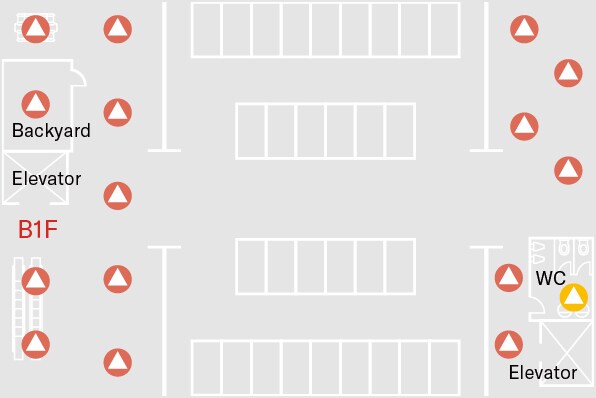

Shopping mall
With great-looking design, superb sound, and impressive economy, VC Series ceiling speakers offer outstanding cost benefits where large numbers of units must be installed in a shopping mall.

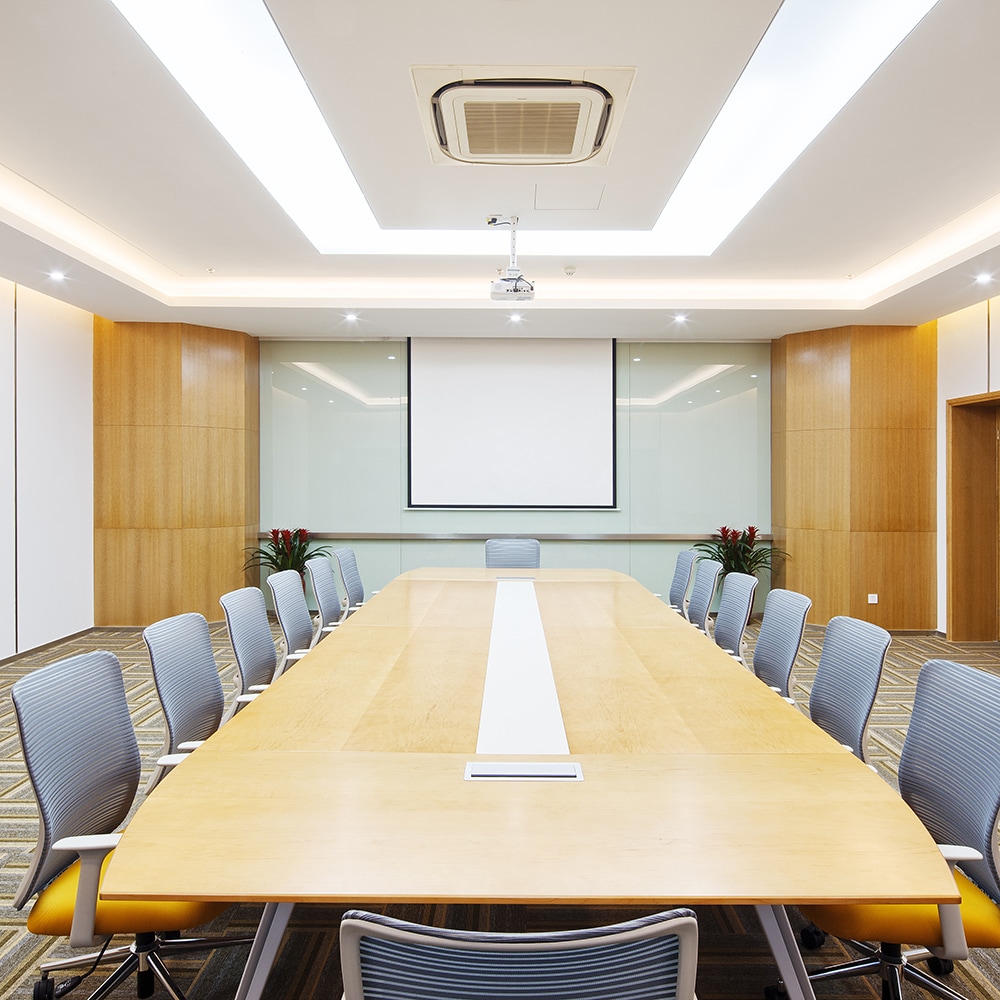

Meeting space

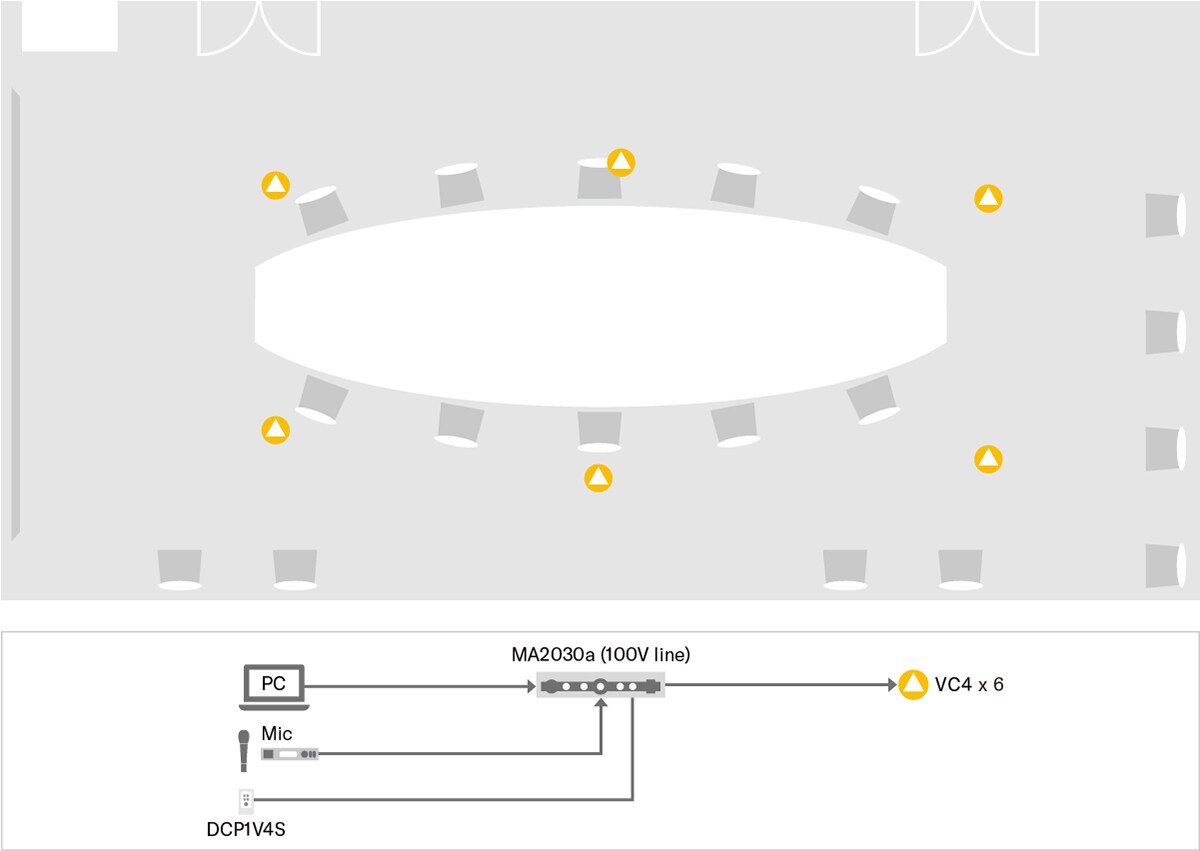

VC Series ceiling speakers provide accurate, natural reproduction that is not only ideal for background music, but for speech delivery as well. In a conference room installation like the one shown in the diagram, VC series ceiling speakers allow clear, stress-free communication and enhance productivity at meetings being held entirely in the room as well as hybrid online conferences.

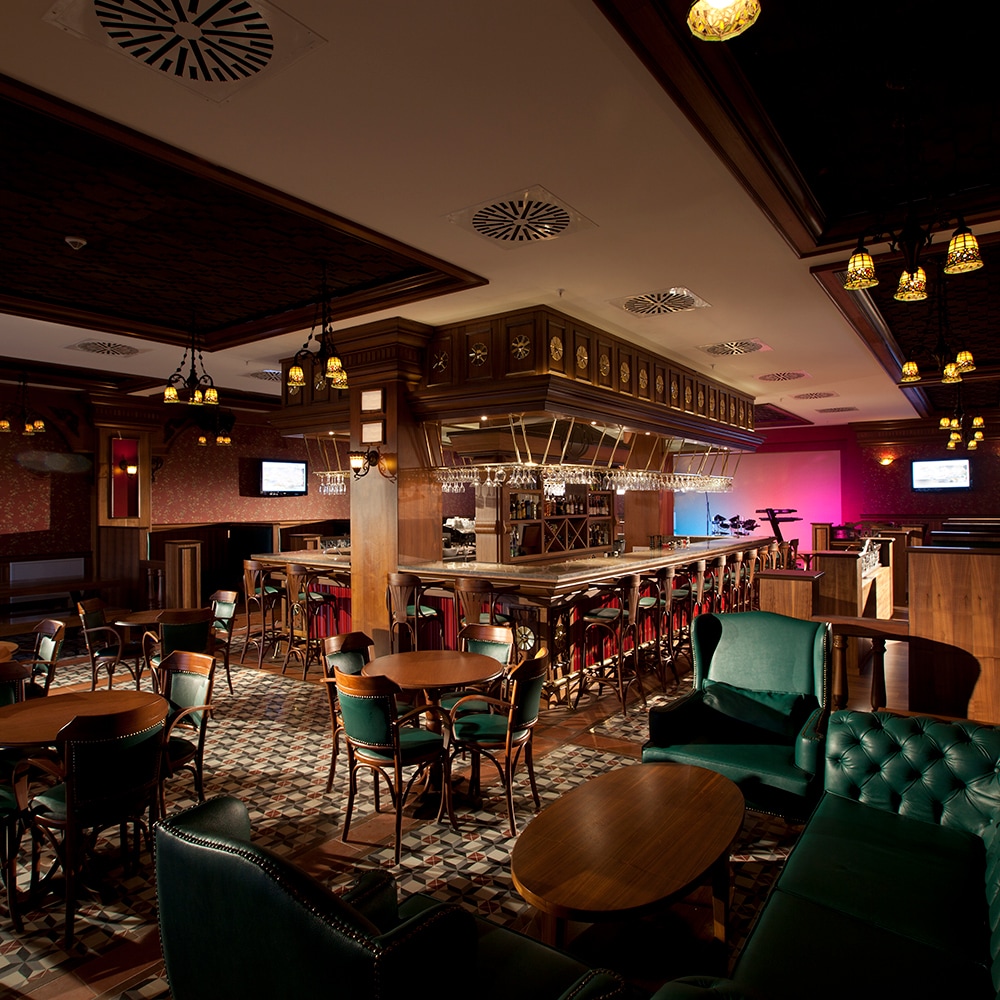

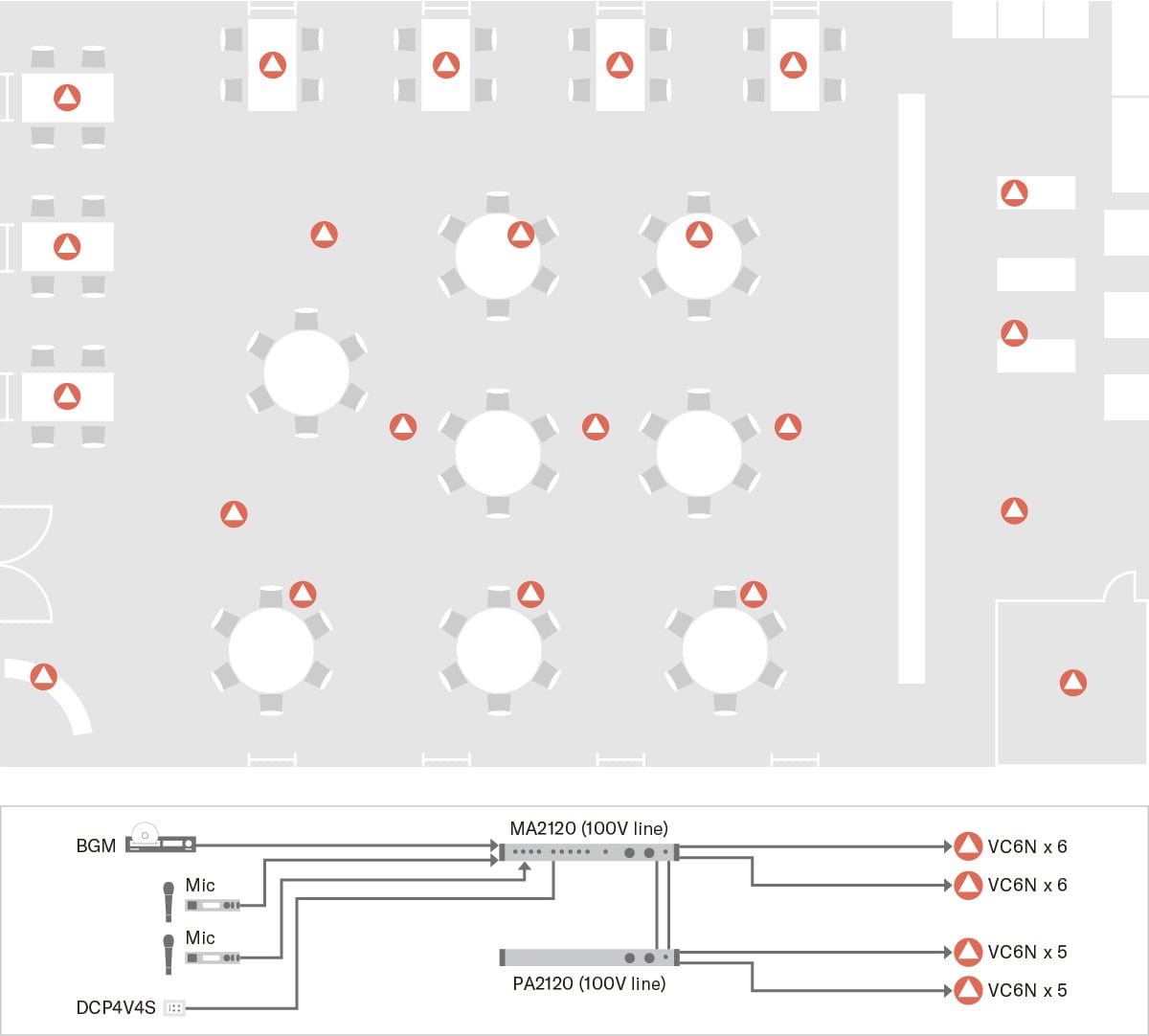

Restaurant
The cost benefits provided by VC Series ceiling speakers can give restaurants, cafes, and similar businesses a significant advantage. Multiple speakers can be installed to achieve consistent sound pressure level and high quality reproduction throughout the service area, creating an enjoyable environment that will appeal to more customers.
