VXH Series

Lineup

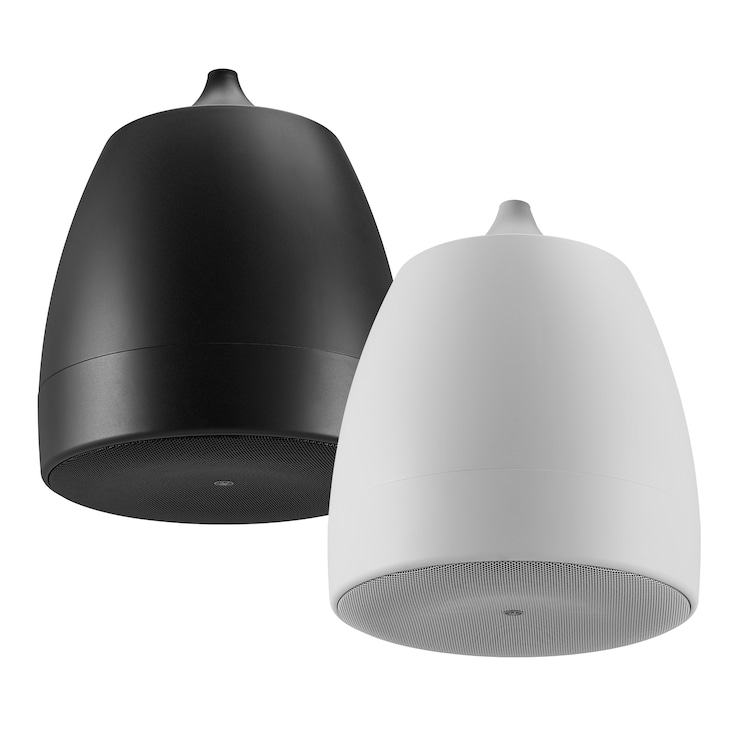

VXH8B / VXH8WPendant Speaker

2-way system with 8-inch woofer and 1-inch tweeter

Narrow dispersion (75°) with "permeable" waveguide and 360W power handling
Engineered for optimum BGM and voice reproduction
Pendant speaker suitable for high, open structure or sloped ceilings
Direct support for low-impedance or high-impedance connections
Paintable grilles with magnetic catches
2 x 6 m steel wire cables by Gripple
Black and white versions available
7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64” D17-3/32”)
Single unit package

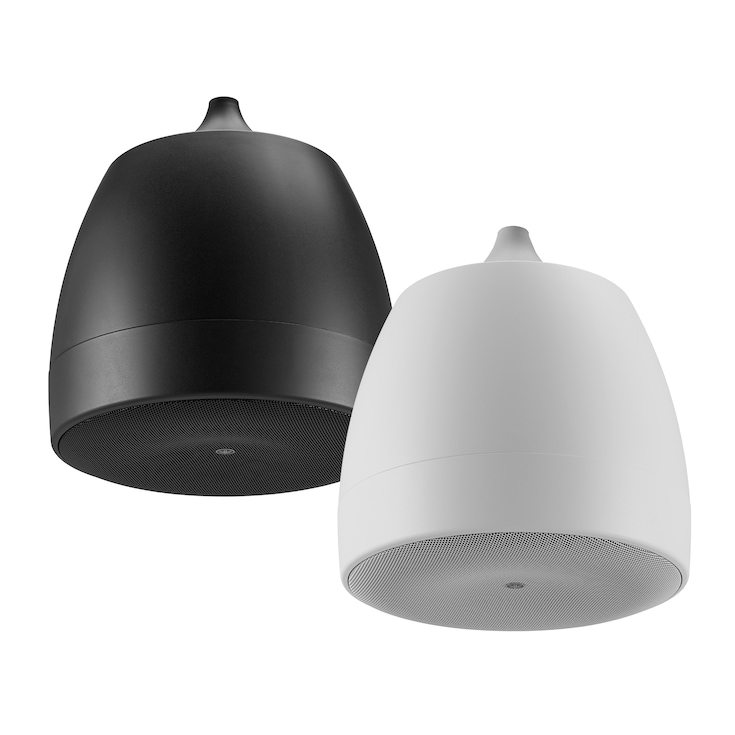

VXH6B / VXH6WPendant Speaker

2-way system with 6.5-inch woofer and 1-inch tweeter

Wide dispersion (120°) and 300W power handling
Engineered for optimum BGM and voice reproduction
Pendant speaker suitable for high, open structure or sloped ceilings
Direct support for low-impedance or high-impedance connections
Paintable grilles with magnetic catches
2 x 6m steel wire cables by Gripple
Black and white versions available
5.7 kg (12.6 lbs), Ø340 x D368 mm (Ø13-3/8” D14-1/2”)
Single unit package

Features

Stunning sound from any ceiling

VXH series pendant speakers are an ideal choice for open-structure or sloped ceilings, adding versatility for a variety of environments and sonic needs.

Two models are available: the wide-dispersion 6.5-inch VXH6 for use where the speakers are to be suspended at a relatively low position, and the high-power 8-inch VXH8 with narrower dispersion for higher suspension positions. You can select or mix and match models to achieve the best sound and coverage in any application.

Recommended Applications

Installations for high-ceiling, huge space and open structure or sloped ceiling such as amusement facility, Large hall sales floor, gymnastic hall and other design-conscious restaurant, clothing store,etc.

Amusement Facility (Aquarium)

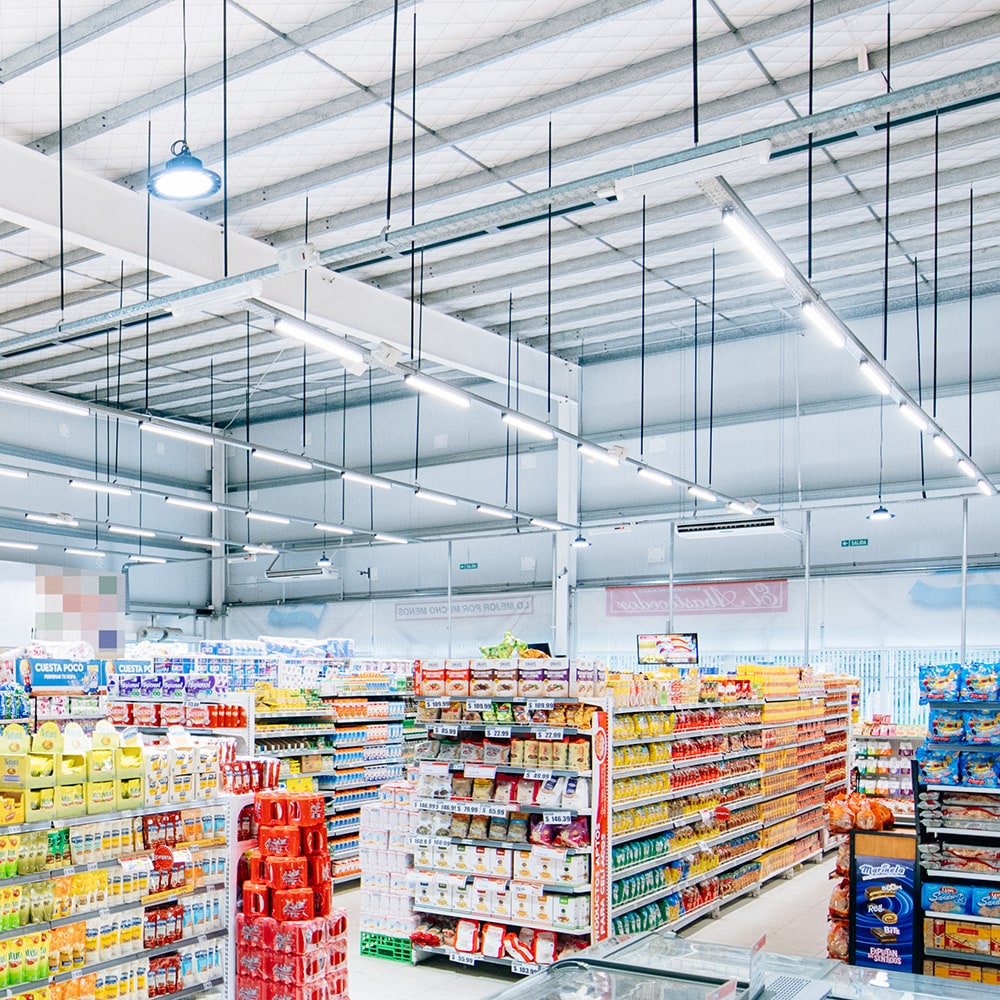

Warehouse store
Restaurant (Beer Hall)

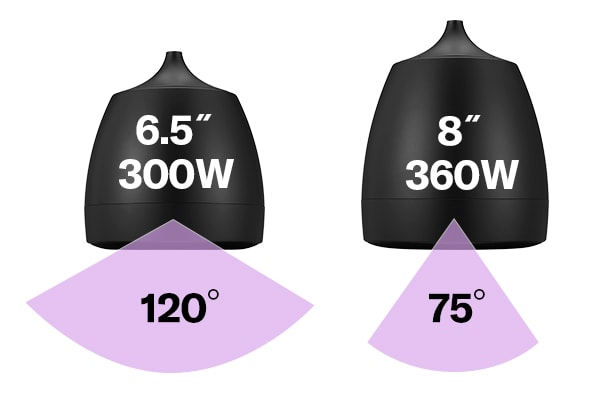

Models for a wide range of applications

Two models are available to adapt varying heights in a wide range of applications. The wide-dispersion 6.5-inch VXH6 is ideal for use where the speakers are to be suspended at a relatively low position, while the high-power 8-inch VXH8 has narrower dispersion that is suited for high suspension positions.

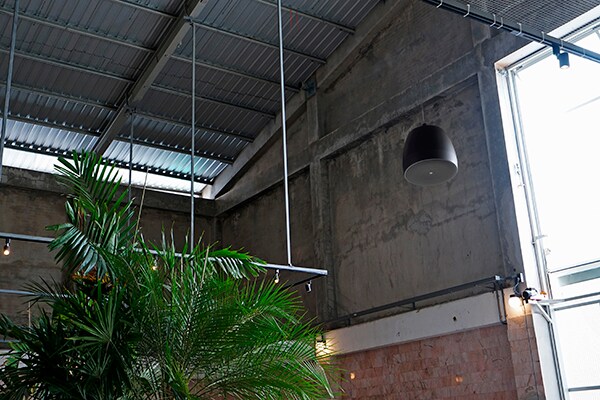

Stylish Yet Unobtrusive

Clean architectural settings require fixtures that seamlessly blend into their environments while maintaining full functionality. VXH series combine unprecedented acoustical performance and a music instrument inspired design that will be at home in a wide variety of settings.

Yamaha VXH Series: More compact, more beautiful, timeless shape

World-class Installation Ease and Safety

Gripple suspension hardware and wire kit included for easy, safe height adjustment during installation.

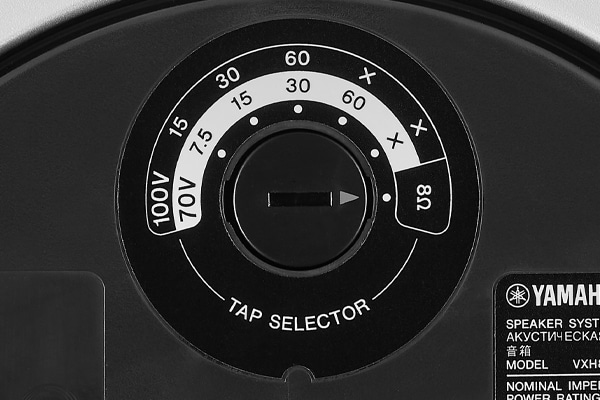

High-impedance and low-impedance supported

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. The need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.

Secure Installation

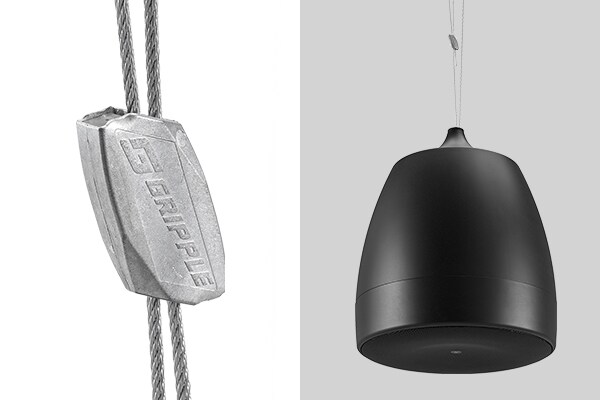

A suspension hardware and wire kit from Gripple, the world standard in suspension products, ensure, safe height adjustment during installation.
Dust and Water Protection

VXH Series speakers are IP45 rated for use in a wide range of environments, including outdoors.

* Not for use in humid places.

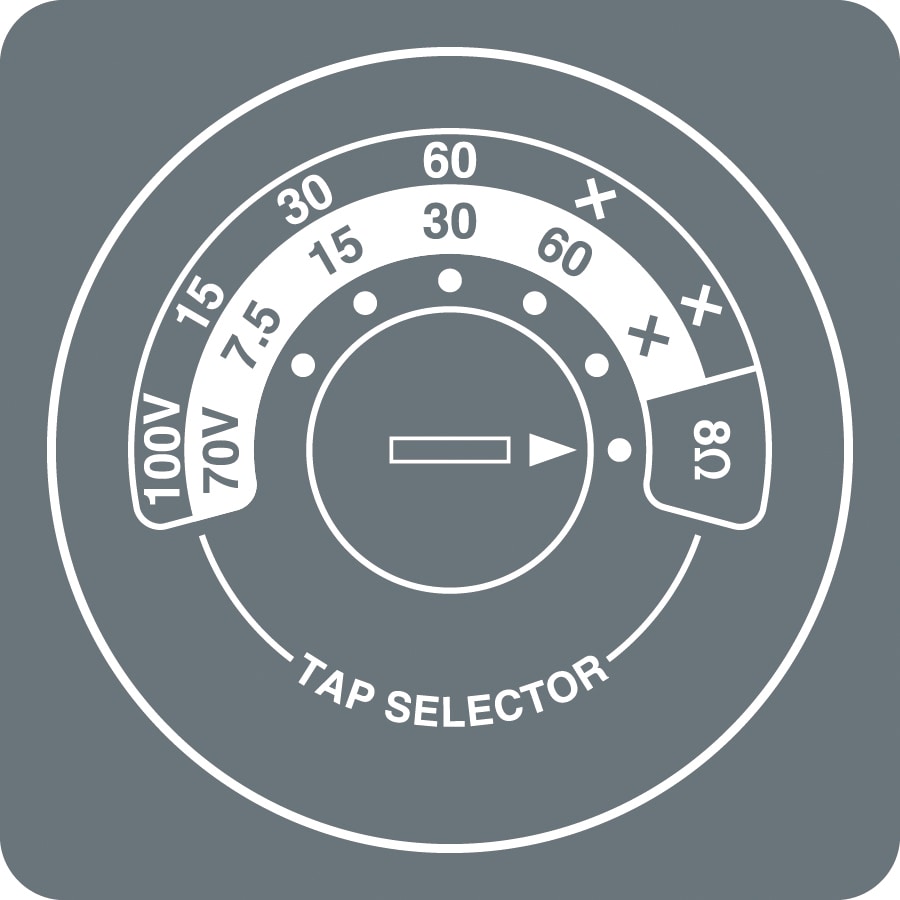

Hi-Z or Lo-Z

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
Portable

A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
Paintable

The supplied grilles can be painted any color to match interior decor.

Systems

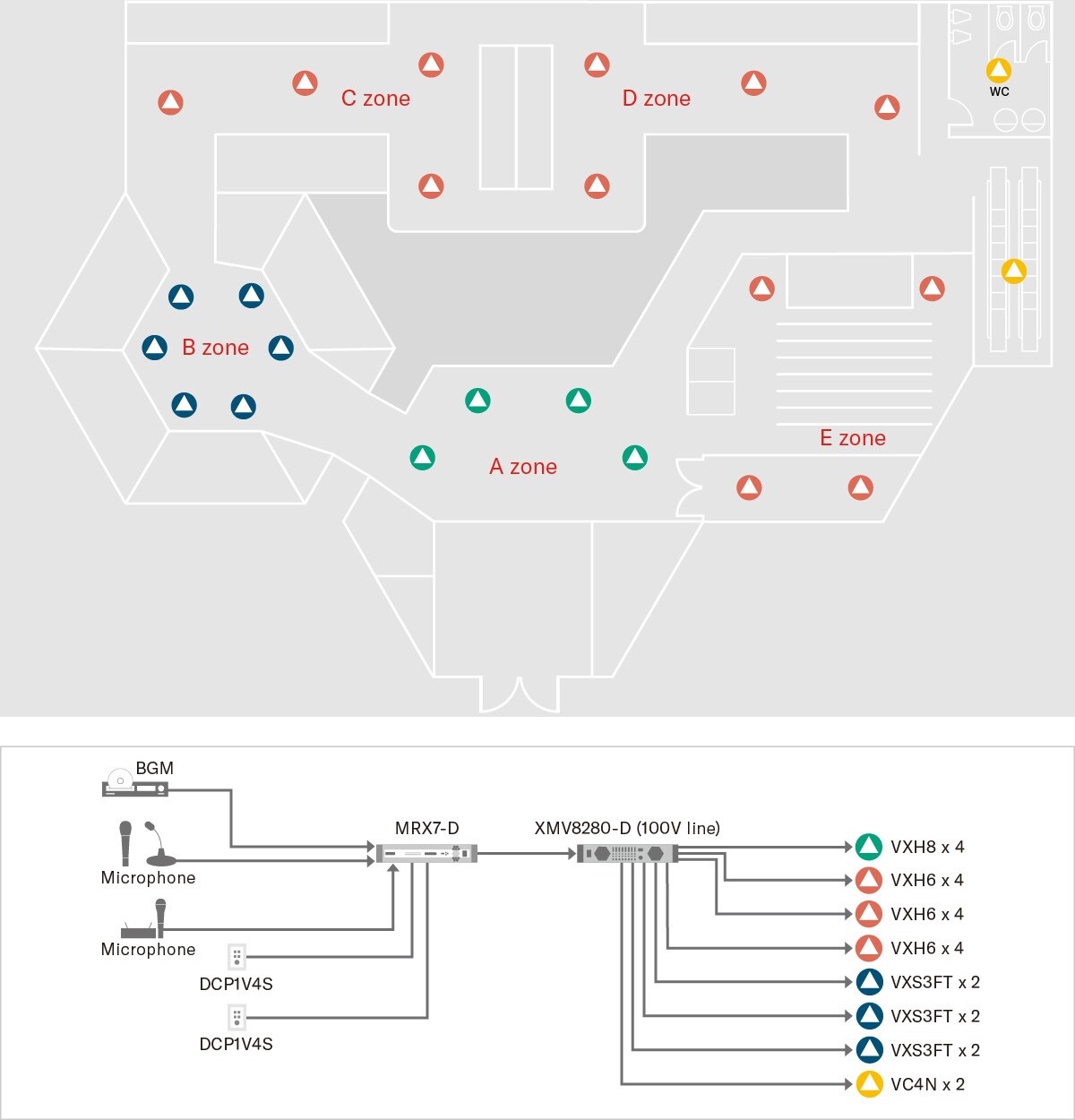

Amusement Facility (Aquarium)

VXH Series speakers can be a huge advantage in amusement facilities where sound is essential and ceilings are high. Sloped or curved ceilings can make installation even more of a challenge. Pendant speakers can be installed easily at any required height in such situations. In this example, VXS1ML speakers are also installed to provide sound at locations where the ceiling is low and space is limited.

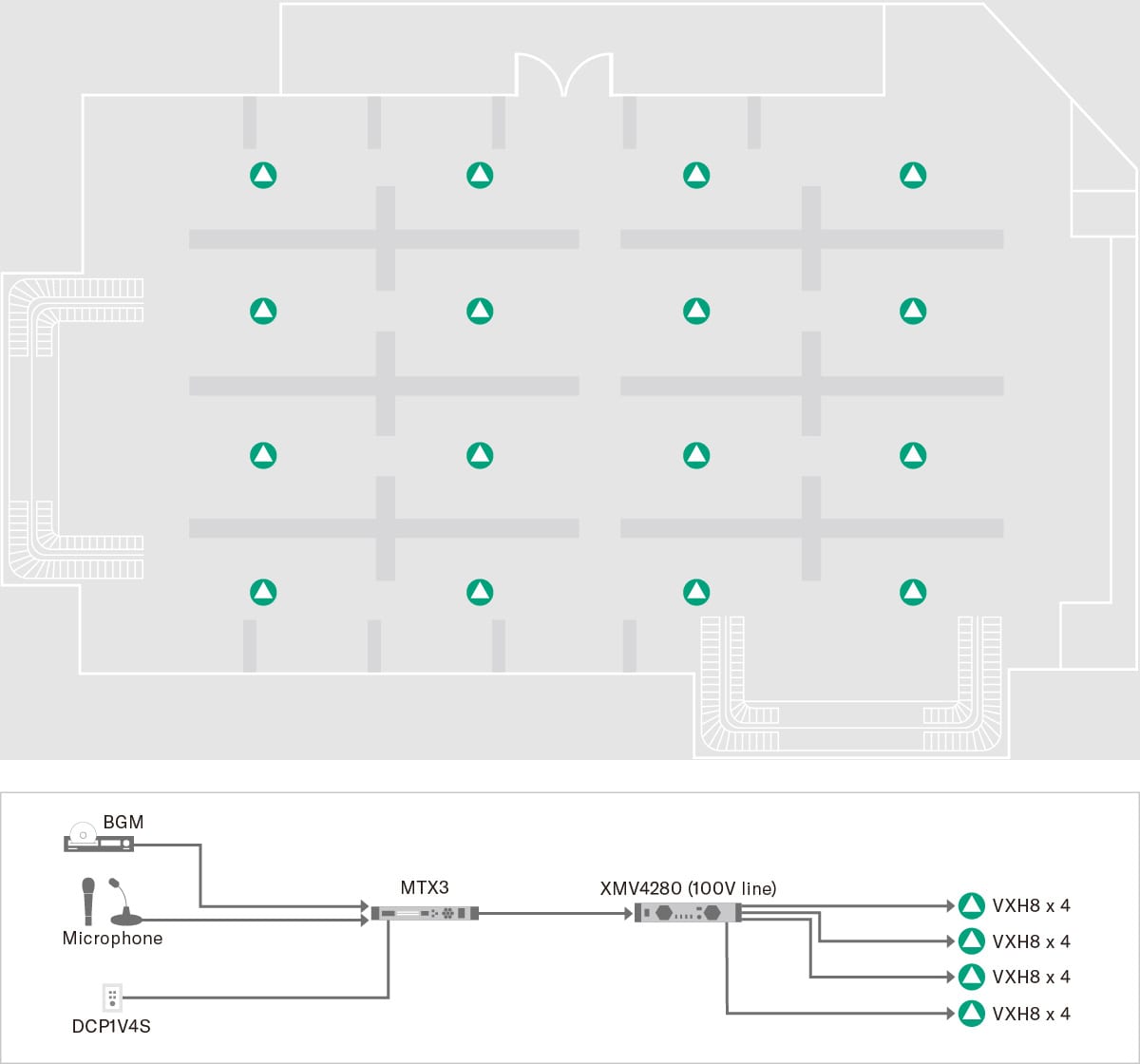

Warehouse store

VXH Series pendant speakers are ideally suited for installation in warehouse stores that have high open structure ceilings. Ample high SPL allows the speakers to be mounted high above the floor while maintaining sufficient volume and outstanding sound quality.

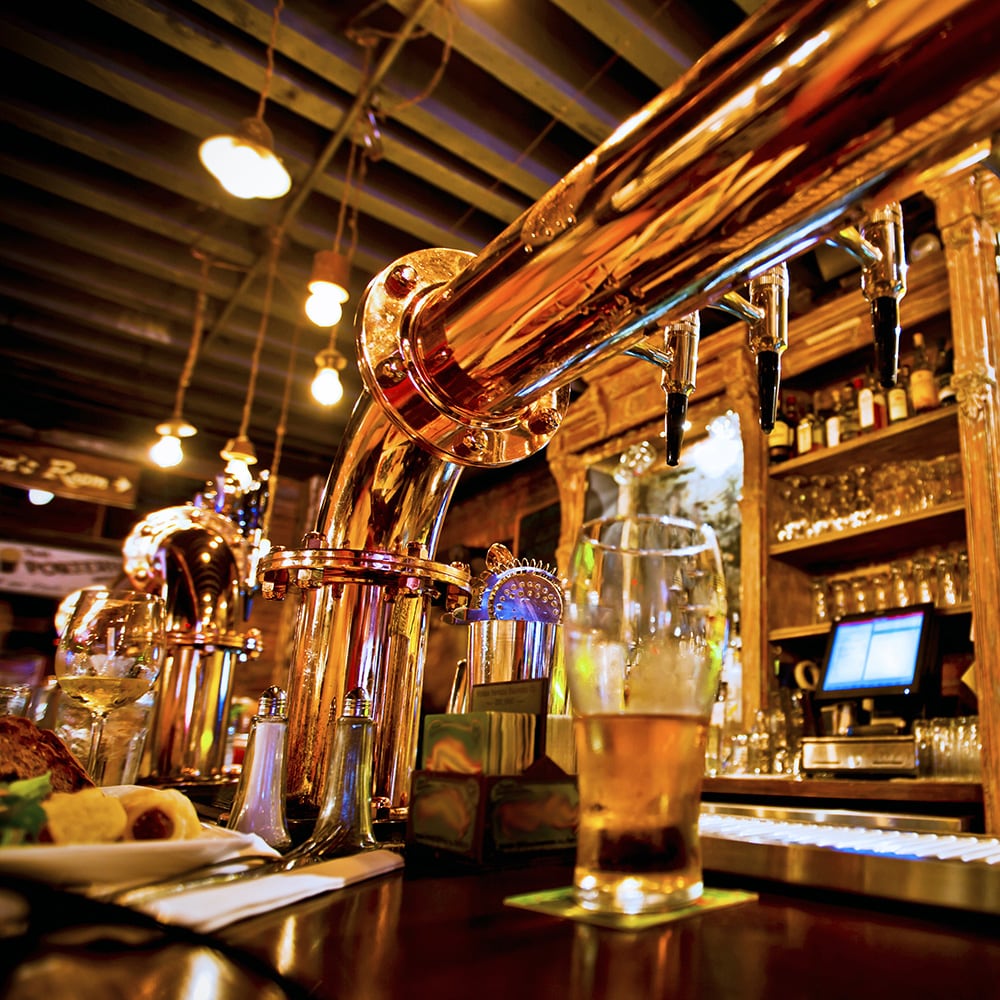

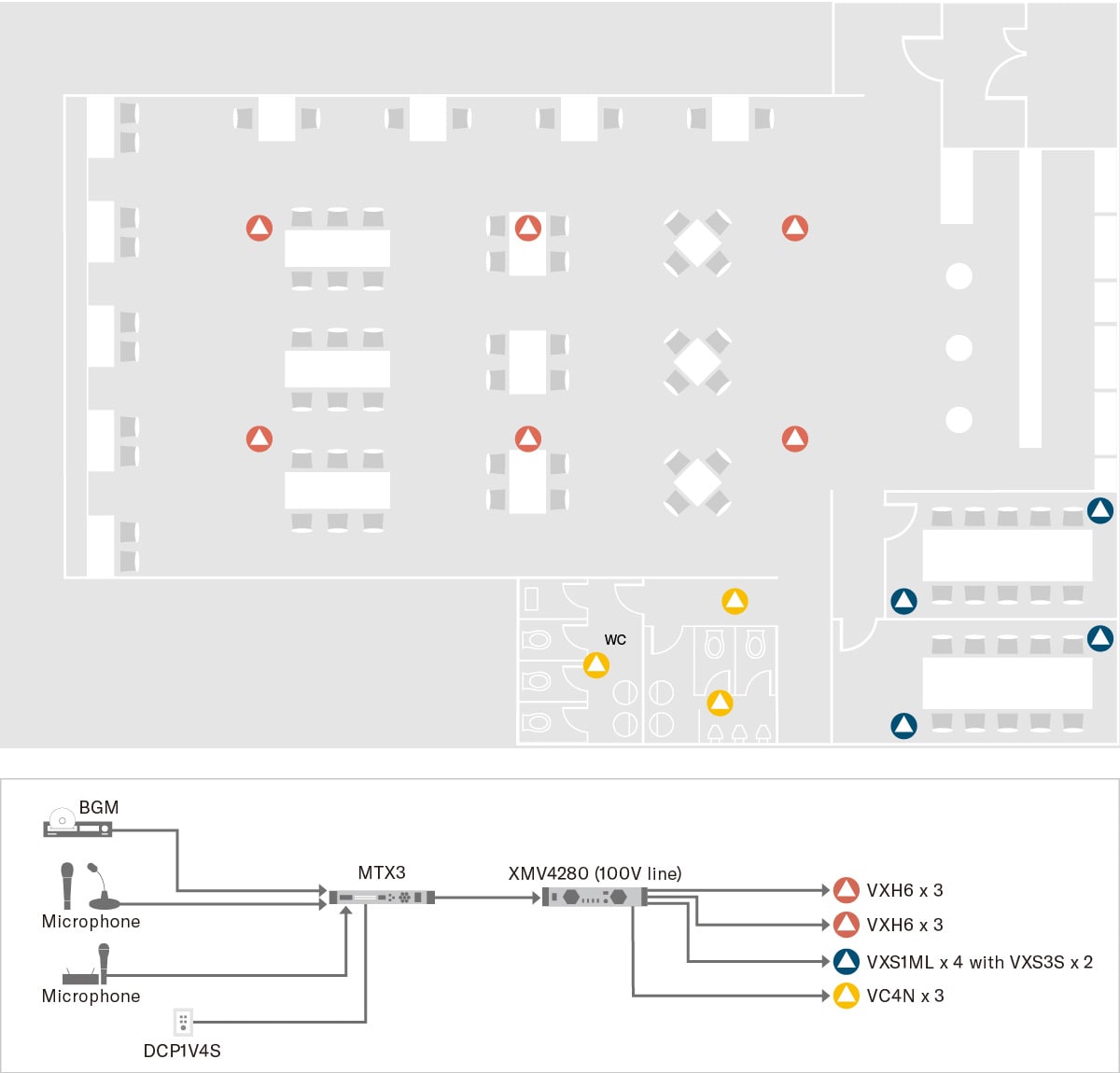

Restaurant (Beer Hall)

VXH Series speakers won’t disrupt the atmosphere in restaurants with high ceilings that are also designed to create a specific mood. The arched hall in this example has a high ceiling that would make installation of standard ceiling speakers difficult. VXH series speakers can be freely positioned for optimum sound coverage. VXS1ML speakers and subwoofers are installed in the private rooms for seamless coverage, while VC4N speakers are used in the rest rooms and hallway.
