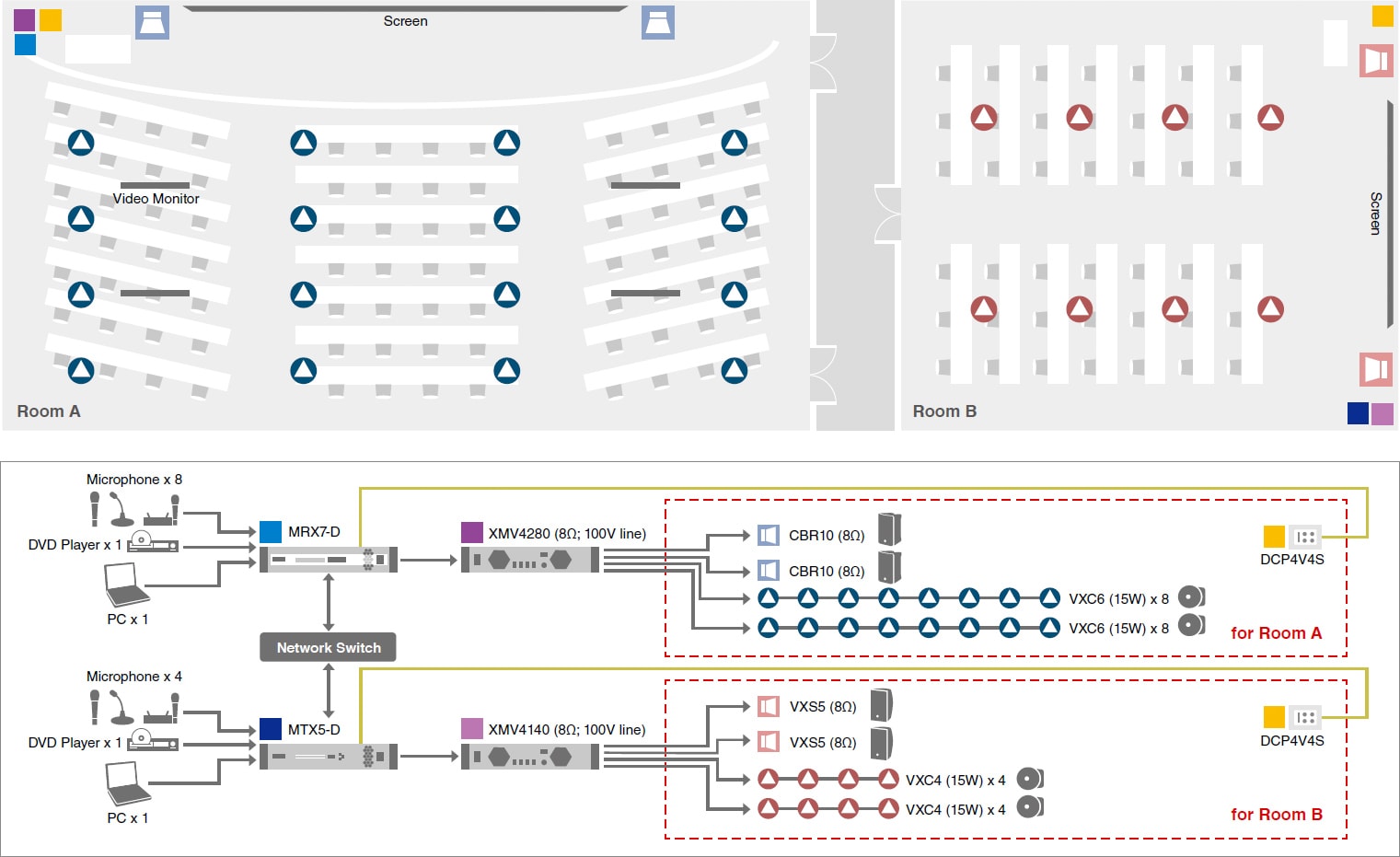

Broadcast Presentations to a Second Room “Although the presentation rooms at our multi-room complex are normally used independently, there are times when we want to broadcast a presentation being held in the main room to one or more satellite rooms so that a larger audience can be accommodated.”
The solution we propose for this situation is ideal for educational facilities, municipal halls, houses of worship, and more.
The MRX7-D and MTX5-D allow Dante audio networking over long distances with no delay or degradation in sound quality. If an appropriate setup is pre-programmed using the MTX-MRX Editor software, it is possible to broadcast audio simultaneously to all rooms by simply pressing a button.
The Dugan Automixer function built into the MRX7-D can be a huge advantage for lectures, panel discussion, or other situations where multiple speakers may use their microphones at unpredictable times. When active the Dugan Automixer keeps track of which microphones are being used and which are not, and automatically adjusts individual microphone levels so that the speaker can be clearly heard without being cut off or interrupted by feedback.
DCP4V4S control panels installed in each room allow remote control of audio source and microphone levels as well as on/off switching.
Lineup
-
MTX Series
Digital Signal ProcessorsMTX Series matrix processors are equipped with flexible processing functions that are essential to a wide variety of applications.
-
MRX7-D
Digital Signal ProcessorsSimple, flexible control for complex, high-capacity sound systems
-
XMV Series
Power Amplifiers
Multi-Channel Power AmplifiersXMV Series multi-channel power amplifiers combine Class-D efficiency with features designed specifically to benefit commercial installation sound systems.
-
VXS Series
Surface Mount SpeakersThe VXS Series lineup features two full-range models and two subwoofers, allowing you to choose the optimal model for a particular application and, if necessary, combine it with a subwoofer for venues that require a stronger bottom end.
-
VXC Series
Ceiling SpeakersThe VXC Series offers three different woofer sizes, allowing you to choose the speaker that is most suitable for your venue.
-
CBR Series
Loudspeakers
Passive LoudspeakersVersatile CBR Series loudspeakers deliver outstanding audio performance for a wide range of applications including front-of-house sound, floor monitoring or installations.
-
Control Panel
Dedicated remote controllers for MTX/MRX and MA/PA series devices.
