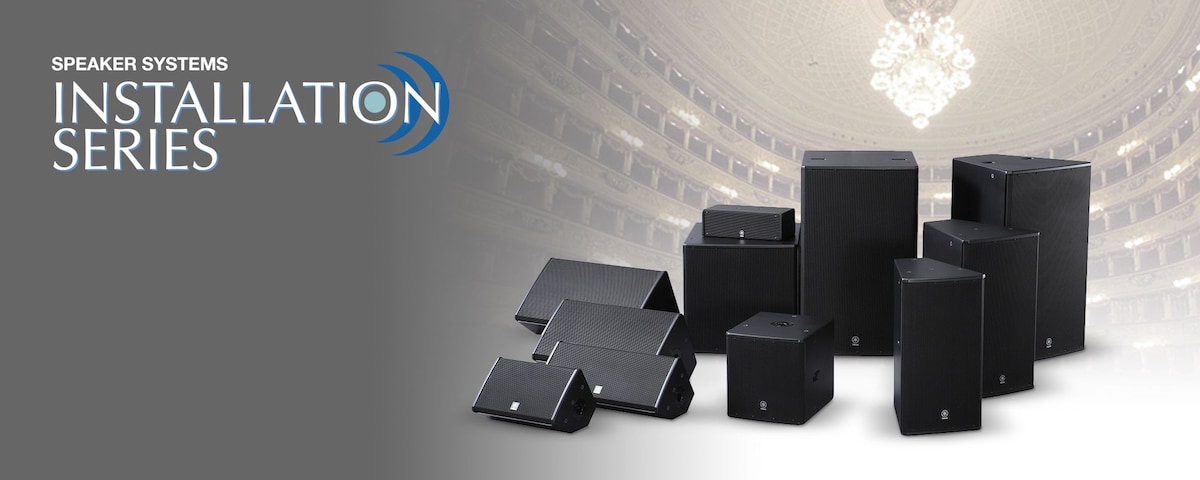

Installation Series Discontinued
The Quest for the Best in Pro Sound
Technological innovation occurs at a breathtaking pace in the world of professional audio, except in one vital but often-overlooked area. In spite of all the innovation, the fact remains that speaker systems are still the most critical, variable, and problematic link in the audio chain. Speakers interact directly with their environment and other components in the system, making it essential to both use speakers that are properly designed for their application and to set them up so that they and the room function as a well-balanced whole. The second part of the above equation is the realm of the sound contractor and engineer, but the first is the responsibility of the manufacturer, and that's where Yamaha's dedication to delivering the best can mean the difference between average and superlative sonic performance.
Yamaha realized more than 40 years ago that simply building systems around speaker units bought from other manufacturers would not do, initiating a long and arduous but fruitful quest for ideal speaker performance based on original technology. Along the way innovative Yamaha speaker technology has resulted in a number of breakthrough products that established new performance standards in a number of critical fields.
The goal is simple: to provide sound reproduction that is totally faithful to the source. But as anyone involved in speaker design and manufacture will attest, achieving that simple goal is extremely difficult, and no speaker on earth can claim absolute perfection in this regard. The good news is that now we've come closer than ever to achieving that elusive goal.
Yamaha's new Installation Series Speakers address a number of important issues that give them unprecedented performance and handling characteristics for live sound applications, including permanent installations. In particular, phase characteristics have been kept smooth and consistent throughout the entire series, so you can mix and match speakers to suit any system and venue without ending up with hot and dead spots due to phase interference. And of course sonic quality is superb throughout the entire reproduction range so the full impact of the source material reaches the audience undiluted.
This approach to design is evident in every Yamaha Commercial Audio product. The proof is in the enormous success of our groundbreaking PM1D and PM5D digital consoles, digital signal processing products, and industry-standard analog live consoles and related gear. Yamaha is simply dedicated to delivering the best sonic performance available anywhere, at any price, from system input to output. Our new Installation Series breaks new ground once again with performance and convenience that can take the sound at any venue to a higher level.
Product Information
2-way Full-range Speaker System
IF2205 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 90º x 60º dispersion pattern.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 1" high-frequency compression driver with 1" exit.
- Six 8mm-screw (M8) and two 6mm-screw (M6) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Matching U-bracket available as an option.
- Barrier strip connectors
IF2108 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 90º x 60º dispersion pattern.
- Multi-angle cabinet design enables floor monitor applications.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 1.75" high-frequency compression driver with 1" exit.
- Eleven 10mm-screw (M10) and six 8mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching U-bracket available.
- Parallel-wired two Neutrik NL4 and barrier strip connectors.
IF2208 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 90º x 60º dispersion pattern.
- Multi-angle cabinet design enables floor monitor applications.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 1.75" high-frequency compression driver with 1" exit.
- Eleven 10mm-screw (M10) and six 8mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching U-bracket available.
- Parallel-wired two Neutrik NL4 and barrier strip connectors.
IF2112/64 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 3" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2112/95 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 3" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2112/99 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 3" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2112/AS 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 3" high-frequency compression driver with 1.4" exit.
- 60-100º x 60º dispersion pattern.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Switchable between single-amp and bi-amp operation.
- Sixteen 10 mm-screw (M10) suspension points provided for flexible rigging.
- Pole mountable.
- Durable black or white finish (can be painted to match any interior).
- Optional matching U-bracket available.
- Parallel-wired two Neutrik NL4 and barrier strip connectors.
IF2112M/64 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 1.7" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2112M/95 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 1.7" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2112M/99 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" woofer and 1.7" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2115/64 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 3" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2115/95 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 3" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2115/99 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 3" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2115/AS 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 3" high-frequency compression driver with 1.4" exit.
- 60-100º x 60º dispersion pattern.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Switchable between single-amp and bi-amp operation.
- Sixteen 10 mm-screw (M10) suspension points provided for flexible rigging.
- Pole mountable.
- Durable black or white finish (can be painted to match any interior).
- Optional matching U-bracket available.
- Parallel-wired two Neutrik NL4 and barrier strip connectors.
IF2115M/64 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 1.7" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2115M/95 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 1.7" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IF2115M/99 2-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" woofer and 1.7" high-frequency compression driver with 1.4" exit.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- Trapezoidal design eliminates interference in array use.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
3-way Full-range Speaker System
IF3115/64 3-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 15" low-frequency driver, 8" midrange driver, and 3" high-frequency compression driver with 1.4" exit.
- Switchable between bi-amp and tri-amp operation.
- Fifteen 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame available.
- Parallel-wired Neutrik NL8 and barrier strip connectors.
IF3115/95 3-way Full-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 15" low-frequency driver, 8" midrange driver, and 3" high-frequency compression driver with 1.4" exit.
- Switchable between bi-amp and tri-amp operation.
- Fifteen 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame available.
- Parallel-wired Neutrik NL8 and barrier strip connectors.
2-way Mid/High-range Speaker System
IH2000/64 2-way Mid/High-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 8" midrange driver and 3" high-frequency compression driver with 1.4" exit.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IH2000/95 2-way Mid/High-range Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
- 8" midrange driver and 3" high-frequency compression driver with 1.4" exit.
- Switchable between single-amp and bi-amp operation.
- Fifteen 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
Low-frequency Speaker System
IL1115 Low-frequency Speaker System
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 15" low-frequency driver.
- Thirteen 10mm-screw suspension points (M10) allow flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame and U-bracket available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
Subwoofer
IS1112 Subwoofer
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- 12" subwoofer.
- Twelve 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black finish (can be painted to match any interior).
- 1-3/8 inch pole socket on top surface.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IS1215 Subwoofer
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- High power subwoofer.
- Dual woofers can be switched for discrete drive (IS1215 and IS1218).
- Twelve 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame available (for IS1118 and 1218 only).
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IS1118 Subwoofer
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- High power subwoofer.
- Twelve 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
IS1218 Subwoofer
Favorites with discerning contractors and engineers, these speakers feature Uni-Phase design and matching sound - even between different models - for easy system setup and tuning.
- High power subwoofer.
- Dual woofers can be switched for discrete drive.
- Twelve 10mm-screw suspension points (M10) provided for flexible rigging.
- Durable black or white finish (can be painted to match any interior).
- Optional matching array frame available.
- Parallel-wired Neutrik NL4 and barrier strip connectors.
The colors and finishes shown may vary from those on the actual products.
