MonitorMix

Personal Monitoring with MonitorMix

The MonitorMix application for the RIVAGE PM / DM7 / DM3 / CL / QL / TF series allows individual wireless MIX / MATRIX / AUX mixing from up to 10 iOS / Android devices simultaneously.

Each performer can have convenient control over the MIX / MATRIX / AUX buses assigned to them, without having to deal with complex settings or parameters. They can also create personal Group settings for even easier adjustment: all levels on just one fader, for example. Even large bands can have the personal control they need, reducing demands on the sound engineer.

[For RIVAGE PM Series]

Up to 2 devices running RIVAGE PM Editor or RIVAGE PM StageMix and up to 10 devices running MonitorMix can be connected at the same time.

[For DM7 Series]

Since up to three devices running DM7 Editor or DM7 StageMix and up to 48 devices running MonitorMix can be connected at the same time.

[For DM3 Series]

Since up to three devices running DM3 Editor or DM3 StageMix and up to 10 devices running MonitorMix can be connected at the same time.

[For CL / QL Series]

Since up to one device running CL / QL Editor, up to 5 devices running CL / QL StageMix and up to 10 devices running MonitorMix can be connected at the same time.

[For TF Series]

Since up to three devices running TF Editor or TF StageMix and up to 10 devices running MonitorMix can be connected at the same time.

Yamaha TF Series Tutorial Video: Editors and Apps

MonitorMix can enhance your workflow, bring freedom and fun to your mix.

Functions

System Example

Name	English	English
MonitorMix User Guide [English]	—	[2.3MB]

Price : Free

Please visit the App Store / the Google Play from the following links for details on OS and device requirements.

Compatibility of MonitorMix with iPad

“MonitorMix” is compatible with both iPhone and iPad.

The following operations are needed to download “MonitorMix” from the App Store.

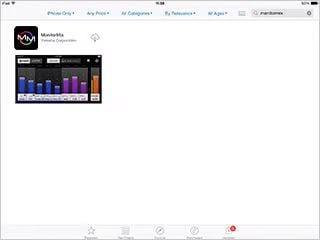

1.Open App Store with iPad, then input “MonitorMix” in the search box and tap “Search” button.

2.”No results for MonitorMix” will be displayed. Tap “iPad Only” that is displayed at the upper left, then choose “iPhone Only”.

3. After selecting “iPhone Only”, search “MonitorMix” again. “MonitorMix” will appear in the search result.

The difference between “MonitorMix” for iPad and iPhone:

“MonitorMix” has the same functions with both iPad and iPhone. When using with iPad, tap the “2X” button that is displayed at the lower right to show the app in full screen.

Notice

Group function may not operate properly if the same bus of the console is controlled from more than two MonitorMix enabled devices.

* Apple, iPhone, iPod touch and iPad are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple. Inc.

** Android is a trademark of Google LLC. Google Play and the Google Play logo are trademarks of Google LLC.

RIVAGE PM Series

To fully support the sound engineers who support the artists and performers, Yamaha makes absolutely no compromises when it comes to quality. Sound, operability, and reliability must all be first class, and implemented in a way that allows engineers to concentrate fully on helping artists and performers deliver their message. The RIVAGE PM series embodies this ideal at the highest level, connecting technology, art, and audiences with waves that encircle the world.

DM7 Series

The DM7 series is an innovative digital mixer lineup that not only guarantees unparalleled sound quality, ease of operation, and high reliability for connecting engineers, artists, and audiences, but is also highly scalable and flexible enough to be adapted for various applications. It can be configured in a variety of forms depending on the engineer's preferences to support a wide range of applications.

DM3 Series

A DM3 series compact digital mixing console features versatile capabilities and portability for a wide range of applications. Offering superb sound quality, fast and easy setup and operation, and professional-level features.

CL Series

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

QL Series

QL series consoles offer all-in-one mixing, processing, and routing capability for small to medium scale live sound, corporate speech events, installations, and much more.

TF Series

TF series consoles take live sound reinforcement to a new level of refinement with TouchFlow Operation™, recallable D-PRE™ preamplifiers, advanced processing and much more.

TF-RACK

TF-RACK is a compact rack-mount version of the TF Series digital mixing consoles, offering the same levels of performance and groundbreaking operability.
