STAGEPAS 100

EXPAND YOUR RANGE, EXTEND YOUR REACH

The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.

Yamaha STAGEPAS 100: EXPAND YOUR RANGE, EXTEND YOUR REACH
Yamaha STAGEPAS 100: Compact design Big sound

Compact design. Big sound.

Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

Advanced technology condensed into a compact unit

Coaxial compression drivers utilize a common motor structure sharing a single magnet, reducing weight and bringing LF and HF closer together to provide a more ideal point sound source. Since sharing a magnet reduces magnetic flux, lowering the sound pressure, these drivers use voice coils made of a light aluminum material called "CCAW" wound in a square shape referred to as "Edgewound" to increase magnetic flux and ensure sufficient sound pressure, and also feature a device called a "demodulation ring" that suppresses magnetic flux disturbance to maintain a high level of sound quality. Additionally, they are equipped with an air venting structure in the basket to reduce LF wavering at high volumes, a polyimide diaphragm to balance HF durability with smooth high-frequency characteristics, and a short aluminum horn for better directional control, durability, and heat dissipation. These compact units house advanced, state-of-the-art technologies.

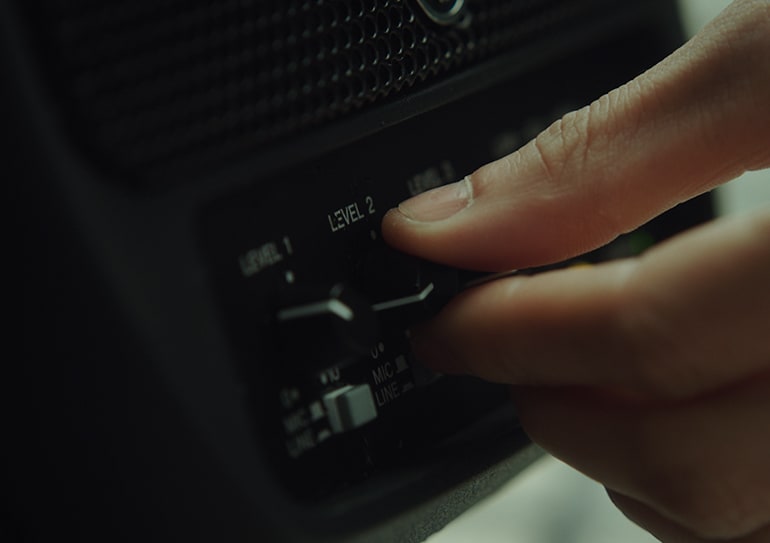

Yamaha STAGEPAS 100: Start the show in seconds

Start the show in seconds

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

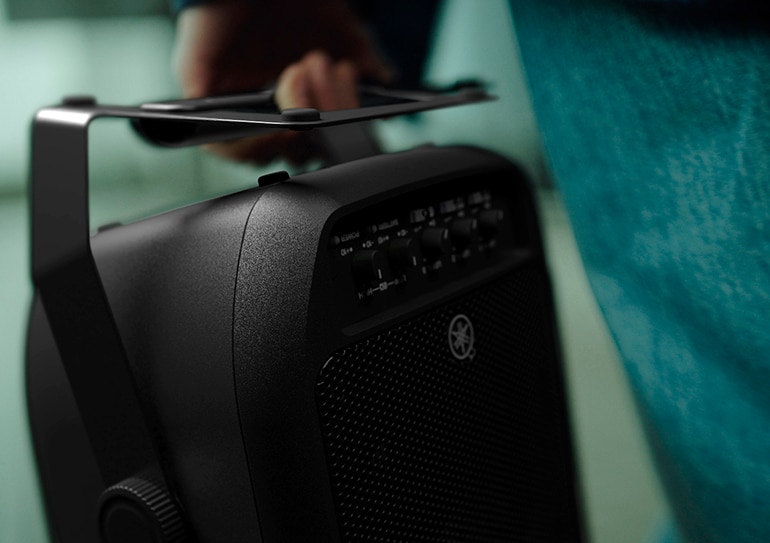

Yamaha STAGEPAS 100: PA in the palm of your hand

“A PA in the palm of your hand”

With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.

6 Hours of non-stop performance

  • Yamaha STAGEPAS 100: 6 Hours of non-stop performance

The STAGEPAS 100BTR is compatible with large-capacity lithium-ion batteries capable of up to 6 hours of continuous operation, delivering reliable performance in environments where there is no power source available.

Multipoint Bluetooth® connectivity

  • Yamaha STAGEPAS 100: Multipoint Bluetooth® connectivity

The STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality adding even more convenience to your set up and operation with wireless connection for music/ audio playback using smartphones and tablets.

The right direction

  • Yamaha STAGEPAS 100: The right direction

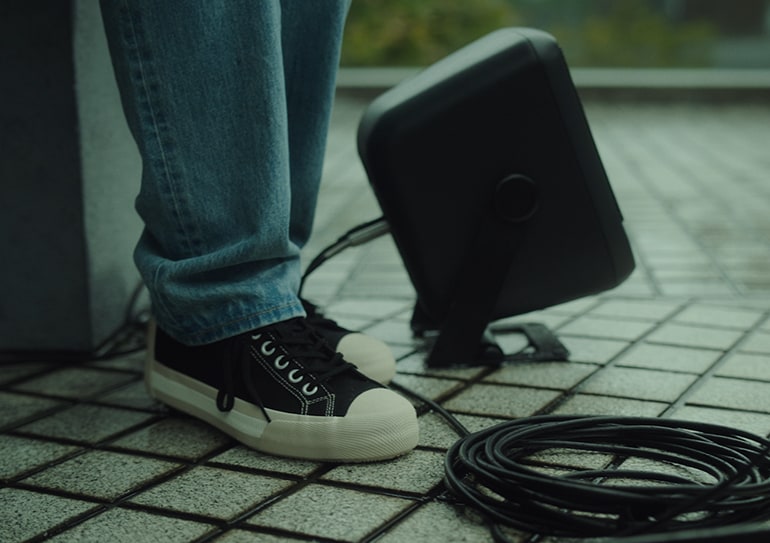

Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.

Mounting possibilities

  • Yamaha STAGEPAS 100: Mounting possibilities

The handle of the STAGEPAS 100 also features a 3/8" diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.

Whenever. Wherever.

  • Yamaha STAGEPAS 100: Whenever. Wherever.

The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.

STAGEPAS 100BTR Portable PA System

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery

  • 100 W Class-D amplifier
  • 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
  • 3-channel mixer (2 monaural mic/line + 1 line)
  • Equipped with a 2-band master EQ
  • Compatible with Hi-Z input (Channel 2 only)
  • Equipped with mix-out
  • Carrying handle doubles as an adjustable stand
  • Compatible with audio accompaniment over Bluetooth
  • Optional carrying bag (BAG-STP100) available for convenient transport
  • Internal lithium-ion battery

STAGEPAS 100 Portable PA System

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, and a 3-channel mixer.

  • 100 W Class-D amplifier
  • 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
  • 3-channel mixer (2 monaural mic/line + 1 line)
  • Equipped with a 2-band master EQ
  • Compatible with Hi-Z input (Channel 2 only)
  • Equipped with mix-out
  • Carrying handle doubles as an adjustable stand
  • Compatible with audio accompaniment over Bluetooth
  • Optional carrying bag (BAG-STP100) available for convenient transport

BAG-STP100 Carrying Bag

Carrying bag for STAGEPAS 100.

  • Weight: 1.1 kg (2.4 lbs)
  • Dimensions (W x H x D): 370 x 240 x 240 mm (14.6" x 9.5" x 9.5")

The colors and finishes shown may vary from those on the actual products.
