ProVisionaire Touch

Smart Looks and Flexible Design for Custom Wireless Control Panels

By simply dragging and dropping widgets such as faders and switches onto a screen, you can create an ideal original control panel dedicated to the applications and functions required for an installation project. No programming know-how or experience is necessary. ProVisionaire Touch can control a wide range of Yamaha PA equipment and NXAMPmk2 NEXO powered TD controller. It also provides compatibility with IDK video switchers for comprehensive, convenient control of audio and video systems. ProVisionaire Touch offers outstanding convenience and reliability for a wide range of applications.

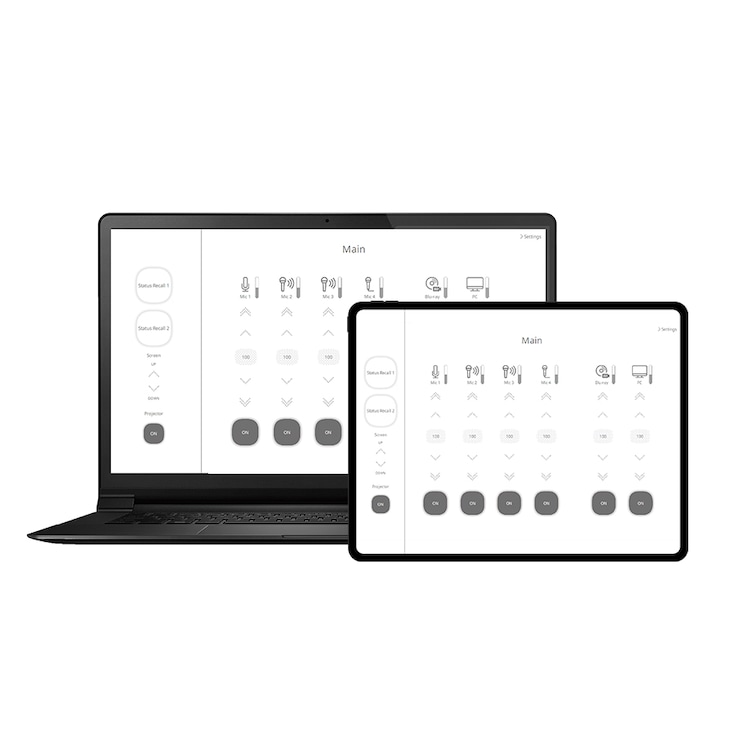

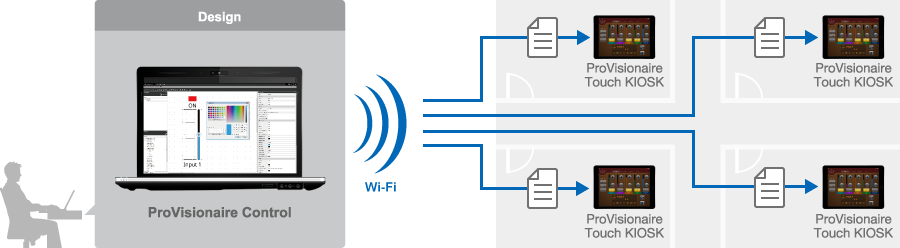

Use ProVisionaire Control to design ProVisionaire Touch KIOSK

Controller screens for the "ProVisionaire Touch KIOSK" iPad application have until now been designed using "ProVisionaire Touch," but this update allows them to be designed using "ProVisionaire Control" PC software and sent directly via Wi-Fi. The controller design interoperability this provides is advantageous when you need to efficiently create large numbers of controllers.

Notes: ProVisionaire Touch KIOSK may crash when opening a settings file created with ProVisionaire Touch while a controller file created with ProVisionaire Control is open. In that case please re-start ProVisionaire Touch KIOSK again and open the controller file.

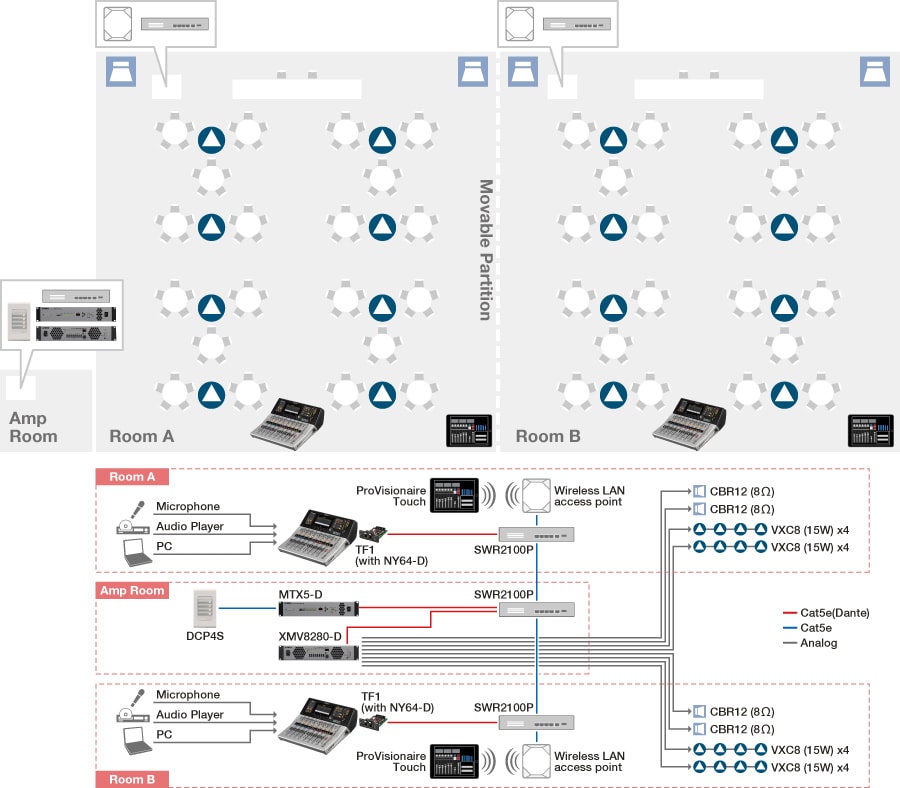

Wide support for Yamaha pro audio equipment

On a single iPad, you can bring together the control functionality that you need to adjust the volume of multiple fader channels for the MTX/MRX series of signal processors or the CL/QL/TF series, or adjust the HA gain of the R-series (ADDA) I/O racks when tuning the system. This allows you to construct a more convenient control system that's ideally suited to your specific venue, whether it be a cafe, restaurant, hotel banquet hall, conference room, auditorium, or event space.

Remote MusicCast® control makes the most of music content

Remote volume, playback, and audio device control

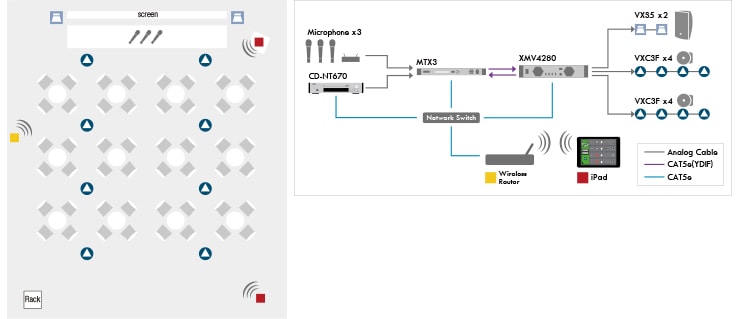

Remote control of MusicCast enabled audio devices is now supported. A MusicCast capable CD player such as the CD-NT670 could be added to an installation that is based on MTX and/or MRX series processors, with playback and track selection controlled via a WiFi network from a single iPad. This type of capability is ideal for controlling playback devices, adjusting volume, and selecting areas in restaurant and banquet hall situations.

Versatile control over a wide range of music sources

In addition to audio equipment connected to MusicCast enabled devices, ProVisionaire Touch now supports computers, networked storage, music files stored on mobile computing devices, and Internet radio. Playlists and album arts from the controlled device appear on the ProVisionaire Touch control panel, allowing easy, intuitive control of remote sources. ProVisionaire Touch is a great way to take full advantage of a large music library stored on a computer, hard disk, or network storage device. In addition, Provisionaire Touch allows the use of the SD player functioninstalled in an MTX/MRX series signal processor. We can flexibly design the utilization system of the music content according to the scale and the environment.

Video content support

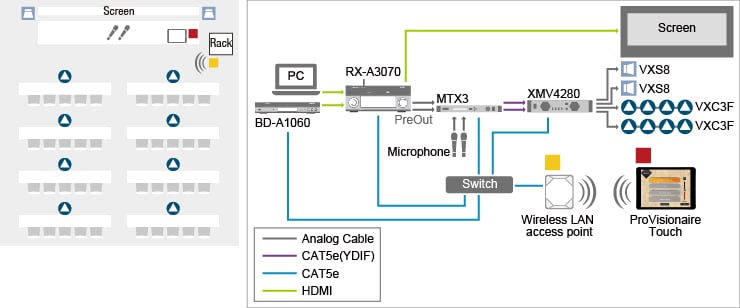

By combining MTX/MRX system with the MusicCast® compatible AV receiver and the Yamaha Blu-ray disc player, it is possible to select the music source, switch the HDMI input source with the AV receiver, and control the device including the video playback of the Blu-ray disc all together with one iPad. For example, by combining video and audio content control in one iPad used in a conference room or classroom, a simpler and more convenient control system can be constructed.

Disklavier™ ENSPIRE control support

Remote entertainment control from playback to performance

ProVisionaire Touch V1.2 supports the Yamaha Disklavier™ ENSPIRE, providing wireless remote control of automated acoustic piano playback as well as DisklavierRadio streaming. Centralized control of BGM sources such as CD players as well as the Disklavier from the ProVisionaire Touch app makes it easy to switch between acoustic piano and recorded sources according to the time of day or event schedules. ProVisionaire Touch is a smooth, effortless way to remotely control a variety of entertainment programs.

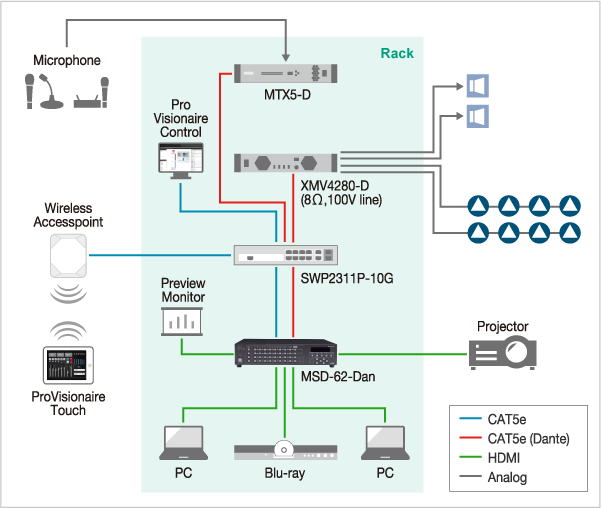

System Example : More comprehensive control both audio and video content (Conference rooms, Auditrium, Multipurpose halls, Hotel Banquet)

- Microphones, a Blu-ray player, computer playback, and video switching can all be controlled from the Provisionaire Control or ProVisionaire Touch.

- Utilize MTX5-D Dugan Automatic mixing function　when more voice input is required for panel discussion and lecture. It can manage the level of each microphone, achieving better clarity in sound and suppressing unwanted feedback.

Supported devices

Product	Model
Signal Processor	MTX3, MTX5-D, MRX7-D
Digital Mixing Console, Digital Mixer	CL1, CL3, CL5, QL1, QL5, TF1, TF3, TF5, TF-RACK

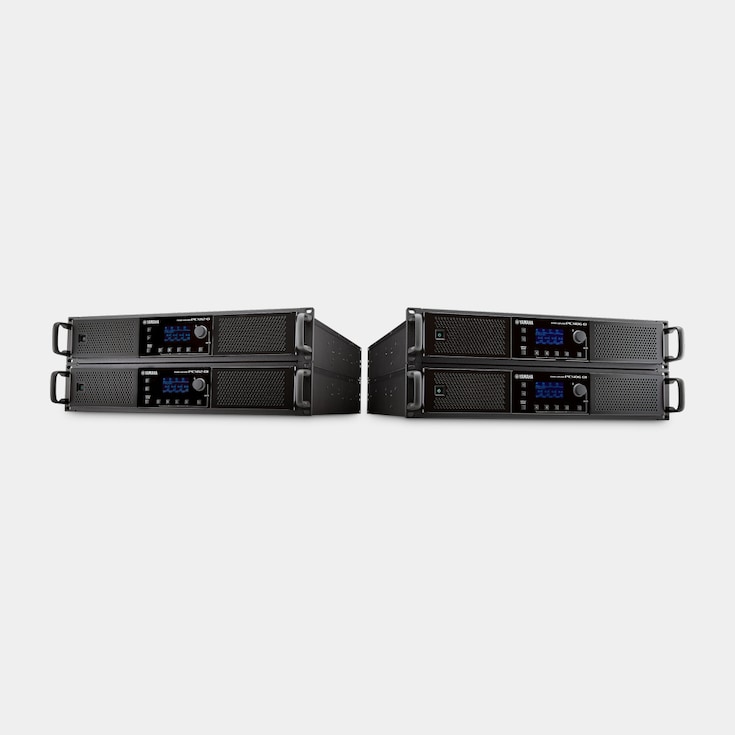

Power Amplifier	XMV4140, XMV4140-D, XMV4280, XMV4280-D, XMV8140, XMV8140-D, XMV8280, XMV8280-D PC406-D, PC406-DI, PC412-D, PC412-DI

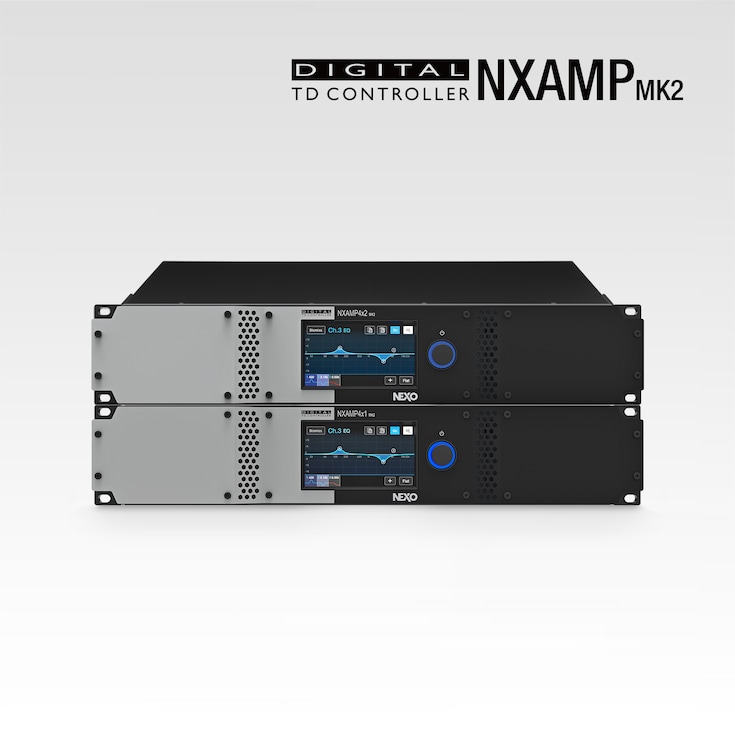

NEXO Powered TD Controller	NXAMP4x1mk2, NXAMP4x2mk2, NXAMP4x4mk2
I/O	EXi8, EXo8 Rio3224-D, Rio1608-D, Ri8-D, Ro8-D Rio3224-D2, Rio1608-D2 Tio1608-D

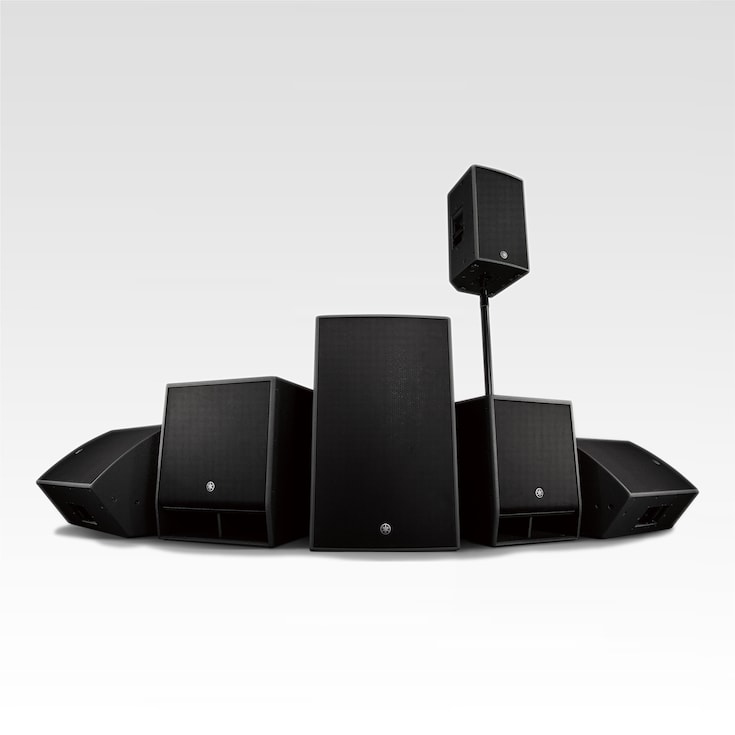

Speaker System	VXL1B-16P, VXL1W-16P DZR315-D, DZR15-D, DZR12-D, DZR10-D, DXS18XLF-D, DXS15XLF-D
MusicCast Device	Network compatible CD player：CD-NT670, CD-NT670D Wireless Streaming Amplifier: WXA-50 Wireless Streaming PreAmp: WXC-50 Multi-Room Streaming Amplifier : XDA-QS5400 Blu-ray Disc player: BD-A1060, BD-S681 AV receiver: MusicCast compatible AV receiver
Disklavier™ ENSPIRE	Upright Pianos: YUS1ENST, YUS1Wn-ENST, YUS1MhC-ENST, YUS3ENST, YUS3Wn-ENST, YUS3MhC-ENST, YUS5ENST, YUS5Wn-ENST, YUS5MhC-ENST Grand Pianos: C1X-ENST, C2X-ENST, C2XCP-ENST, C3X-ENPRO, C5X-ENPRO, C6X-ENPRO, C7X-ENPRO
Video Switcher (IDK)	MSD-501, MSD-502, MSD-701, MSD-702, MSD-6203(-DAN), MSD-6204(-DAN), MSD-6206(-DAN), MSD-6208(-DAN)

ProVisionaire Control / ProVisionaire Touch Compatibilities

Basic procedure: setup to operation

Step 1: Controller Design

- Create a layout with widgets that perform the functions of faders and switches, and assign them to the required MusicCast® and Disklavier™ ENSPIRE functions.

Step 2: MTX/MRX System Setup

- Connect all devices to a single network, and enter the IP address of each device to allow control.

Step 3: Operation

- Once the system is online, all compatible devices including MusicCast® devices and the Disklavier™ ENSPIRE can be controlled. The control panel setup data can be copied to multiple iPads to create additional control panels, as required.

Price : Free

Compatible Devices : iPad (not including the first-generation model)

iOS : 9.0 or later
