Discontinued

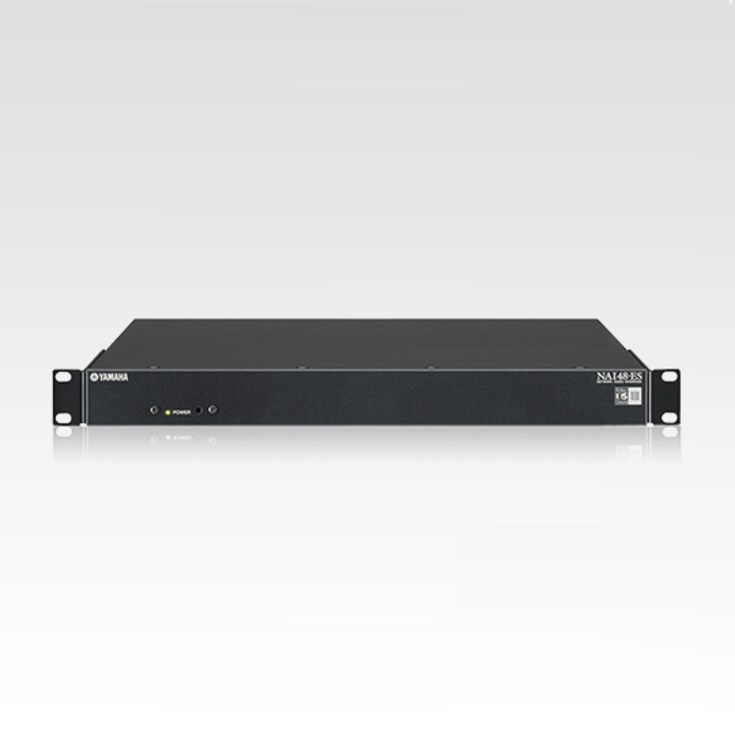

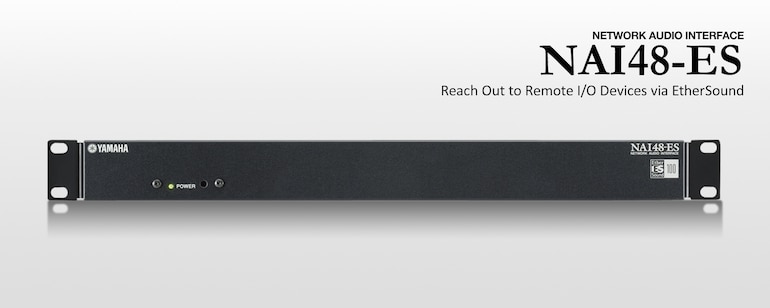

NAI48-ESNetwork Audio Interface

A 48-channel AES/EBU and EtherSound interface that's quick and easy to set up and use.

  • Transfer up to 48 channels of digital audio between console and stage or any other location via a single CAT5e Ethernet cable at sampling rates up to 96 kHz.
  • Eliminates noise problems that are unavoidable with conventional analog gear and multi-cable type setups, and dramatically reduces analog cable length for superior sound quality.
  • 48 AES/EBU inputs and 48 AES/EBU outputs are provided via 25-pin D-sub connectors.
  • Designed with Yamaha professional sound gear in mind: minimum setup hassle, trouble-free operation.
  • An external power supply can be used in addition to the internal power supply for redundant failsafe operation.
  • Use standard Ethernet hubs and routers to create any network configuration you need.

Features

48 channel digital multi-core

The NAI48-ES is a digital audio network interface that uses the EtherSound network protocol. Digital mixing consoles such as the Yamaha PM5D, M7CL, or LS9 can be connected to AD8HR 8-channel microphone preamp/AD converter or DA824 DA converter units via the NIA48-ES for remote analog input or output interfacing on stage or wherever needed. This type of system eliminates noise problems that are unavoidable with conventional analog console plus multi-cable type setups, and dramatically reduces microphone cable length for superior sound quality. Cabling between the console and "stage box" units is also simplified for fast, easy setup.

* 48 channels of digital audio each way over a single Cat-5 Ethernet cable

* EtherSound™ Networking

* Uncompromising Yamaha Quality, Compatibility, and Reliability

48 channels of digital audio each way over a single Cat-5 Ethernet cable

The NAI48-ES is a digital interface that lets you transfer up to 48 digital inputs and 48 digital outputs between console and stage or any other location via a single Cat-5 Ethernet cable. 48 AES/EBU inputs and 48 AES/EBU outputs are provided via 25-pin D-sub connectors. The AES/EBU inputs and outputs can be directly connected to a wide variety of digital front-end devices such as Yamaha AD8HR 8-channel remote head amps for top-quality line or microphone input, as well as a range output gear.

EtherSound™ Networking

The NAI48-ES employs EtherSound networking technology to transfer multiple channels of digital audio over standard Ethernet cable with extremely low latency. This advanced, easy-to-manage protocol is designed to handle up to 64 channels of digital audio, and will easily transfer 48 channels of 24-bit 48-kHz audio in both directions over distances up to 100 meters with appropriate high-performance cables. The most convenient way to add EtherSound capability to Yamaha digital mixing consoles is to install one or more AuviTran AVY16-ES EtherSound cards in the console's Mini-YGDAI card slots, according to the performance and channel capacity required. Then you can simply connect a standard Cat-5 Ethernet cable between the console and NAI48-ES to transfer all audio channels plus remote control signals for compatible devices such as the AD8HR remote head amplifier. You can even use standard Ethernet hubs and routers to create any network configuration that suits your needs.

Uncompromising Yamaha Quality, Compatibility, and Reliability

The NAI48-ES is not the only network device of this type, but it is without a doubt the best choice if maximum quality and economy are important criteria. The NAI48-ES delivers superior digital audio performance and networking capability at a cost that cannot be matched at the current time. And because it's designed with Yamaha Commercial Audio sound equipment in mind you can rest assured that it can be set up with minimum hassle and will operate trouble-free. For even further reliability assurance you can use the internal power supply plus an external redundant power supply unit for dual failsafe operation.

* Specifications are subject to change without notice. The colors and finishes shown may vary from those on the actual products.
