With DTX Touch, you can control electronic drums as you would tune acoustic drums. The intuitive UI with numerous pictures and graphs makes it easy for anyone to operate. Get the most out of your kit! *To use the application, you will need to connect your smart device to DTX using a USB cable and adapter. Please refer to our connection manual for details.
“A powerful, engaging drumming experience with compact convenience”
The DTX6 series is a good option for drummers who want to enjoy playing the drums and improve their skills.
Each kit is compact yet offers a high degree of flexibility in setup, with each pad carefully designed to provide a feel that closely resembles an acoustic drum.
The sound is crafted not only by using samples to create a realistic drum feel but also by adjusting it to stand out within a song, giving you the sensation of sitting in front of a real drum kit.

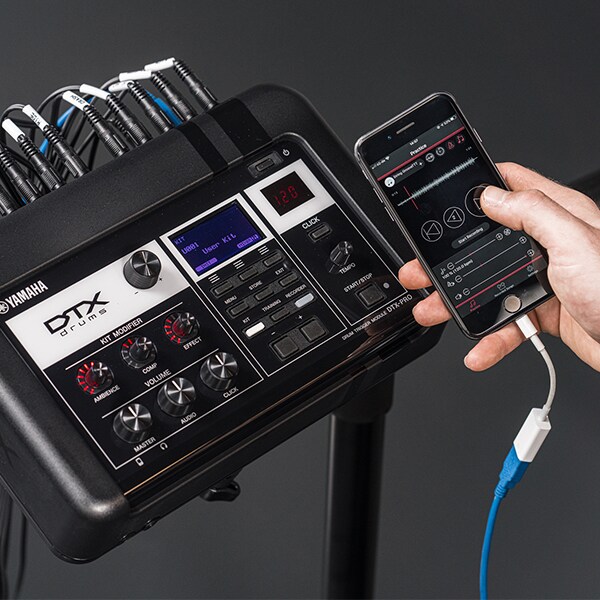

Enhance your drumming experience with a variety of built-in training functions, along with compatible applications that are ideal for practicing with your favorite songs and creating videos.
DTX-PRO V2.0
DTX-PRO brings additional kits and features with the free Version 2 update.
- Newly added 30 preset kits, including the Recording Custom kit.
- Several kits can now be modified for realistic shell resonance and snare wire sounds (Bleed function).
- Enhanced velocity curve adjustments.
- Easy configuration of multi layer voicing
- The DTX-PRO can now be used as a host module by connecting the DTX-PRO module to the corresponding module via USB cable (USB Trigger Link function).
Real sounds that drive the drummer
No compromise has been made in recording the sound of the instruments themselves. The DTX PRO sounds have been fine-tuned to naturally follow the drummer’s performance and allow for maximum expression.
The acoustic drum sounds built into the DTX-PRO are all real sounds recorded in world renowned recording studios. As well as recording the direct drum sounds though, the unique natural ambience of the studios where they were recorded was also sampled.
Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineer to give the final audio files. The project sound director, an electronic musical instrument development professional, specified exacting recording techniques to capture the full detailed sound of each drum and cymbal, from the initial attack, until the very end of the natural sound.
The DTX pads, the drummer’s interface with their instrument, have been carefully matched to the DTX-PRO Module to offer excellent expressive capabilities.
Intuitive functionality that stirs creativity

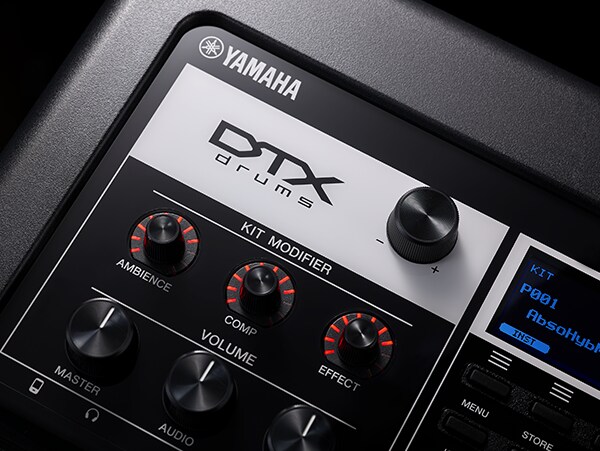

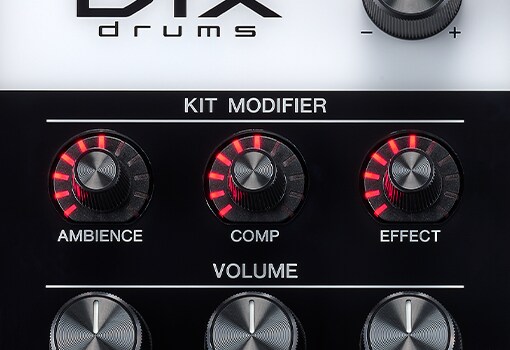

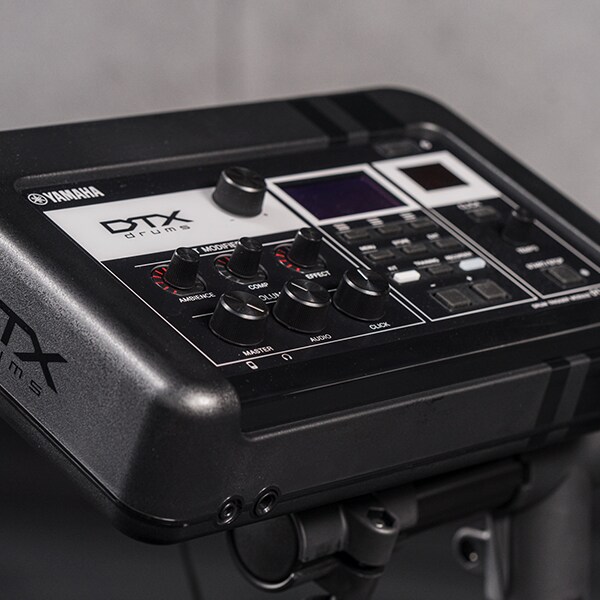

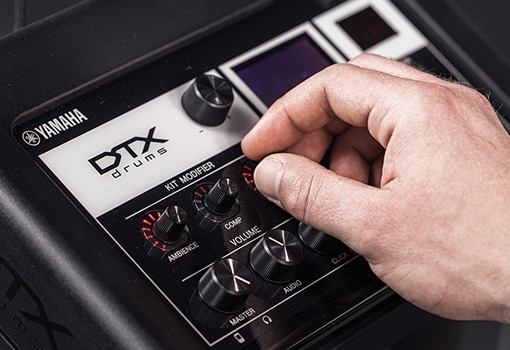

The KIT MODIFIER knobs featured on the DTX-PRO offers drummers limitless possibilities for their creativity.
The KIT MODIFIERs condense the sound creation know-how that Yamaha has accumulated over decades into three knobs: AMBIENCE, COMPRESSION, and EFFECT.
A wide range of tonal possibilities are available thanks to Yamaha engineers — from the natural sound of acoustic drums, through to live performance sounds, and heavily effected sounds.
The AMBIENCE knob controls the natural ambience and reverb of the drum kit sound. On acoustic drum sounds, the AMBIENCE MODIFIER knob controls the real recorded natural ambience from 0-50%. When turned up higher than 50%, high quality digital reverb is also introduced to the sound.
The COMP and EFFECT knobs utilize the "1-knob" control technology featured in Yamaha PA products.
The COMP adds one-knob compression to the whole kit sound, from subtle to very obvious, while EFFECT controls the mix of the internal effects processors. The processors are fully adjustable and have a long list of available effects to choose from.
A playing experience in a class of its own

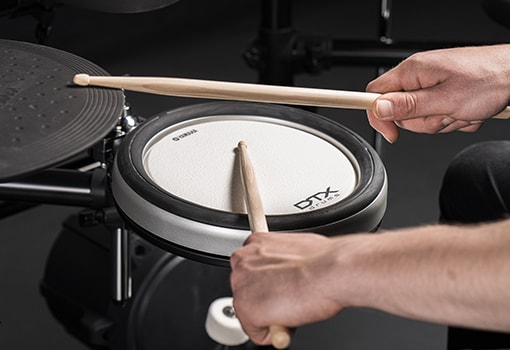

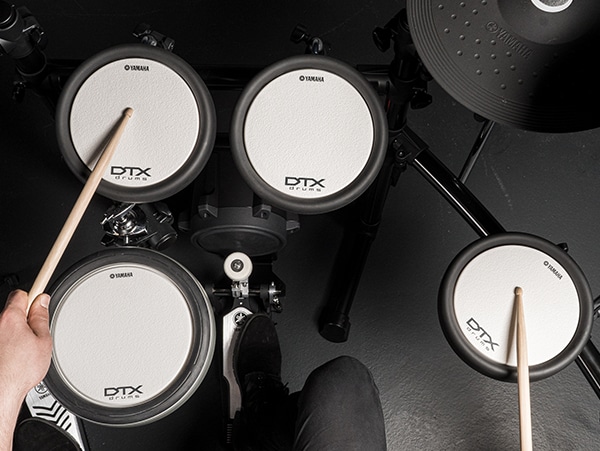

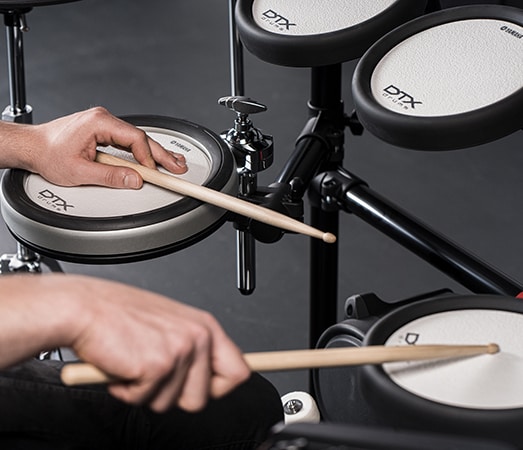

The DTX6 series is equipped with TCS (Textured Cellular Silicone) pads, providing unparalleled levels of realism, feel and quietness.

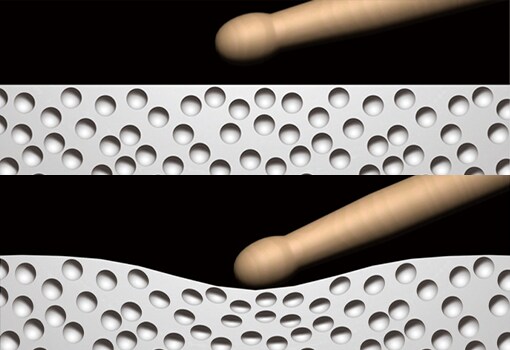

Yamaha's original TCS head surface uses a foamed silicone material that contains thousands of air bubbles. With the perfect level of firmness and rebound that allows players to hit hard, TCS offers a realistic, natural feel that inspires you to want to keep playing, and because the surface never loosens, every strike feels perfect.
In addition, a unique floating structure, without any direct contact with the head and body parts, prevents vibration from being transmitted elsewhere, while also improving pad sensitivity. The air bubbles in the TCS head also serve as a cushion to soften the stick sound.
Features
"Superbly Playable"
Reproducing the way a drum behaves when struck is a key factor in the playability of electronic drums.
Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of instrument behavior. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PRO, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of music hardware has allowed them to offer combinations of expertly crafted modules and pads that deliver superb playability.
"High-performance sound engine that recreates sound creation"

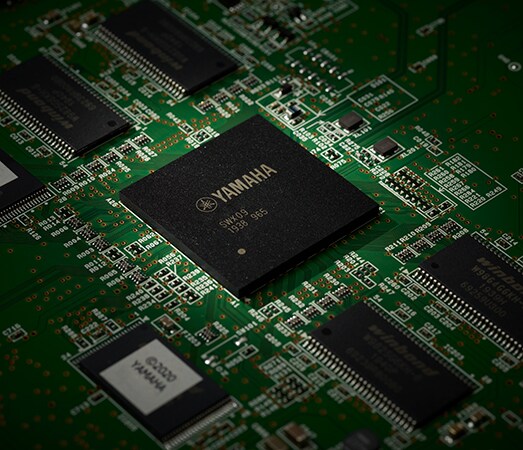

The high-performance sound engine in the DTX-PRO module leverages the technologies that Yamaha has acquired over decades of making musical instruments of all kinds.
Every single channel of the DTX-PRO module has three band, sweepable EQ, channel compression (in addition to the overall kit compression), Transient Adjustment (where the Attack and Release of each sound are individually adjustable) and Insertion effects, to help let drummers recreate their favorite drum sounds.
As a complement to this, Yamaha drum pads feature pad sensing technologies that respond with precise accuracy to the actions of the player, delivering the ultimate in expressive capability that is reflected in the sound.

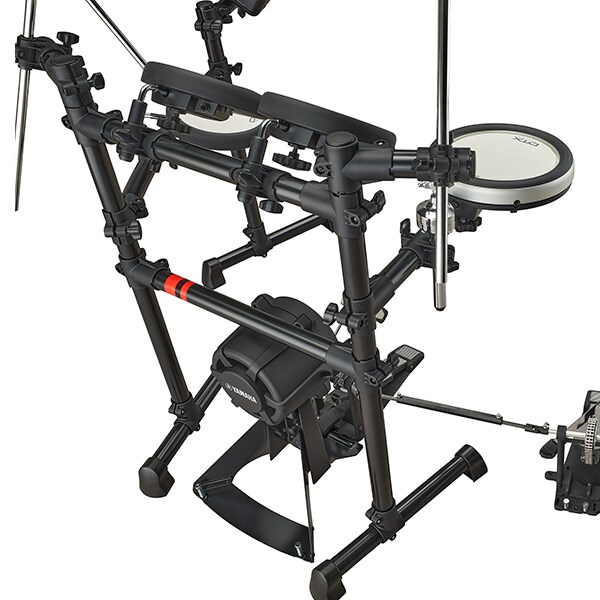

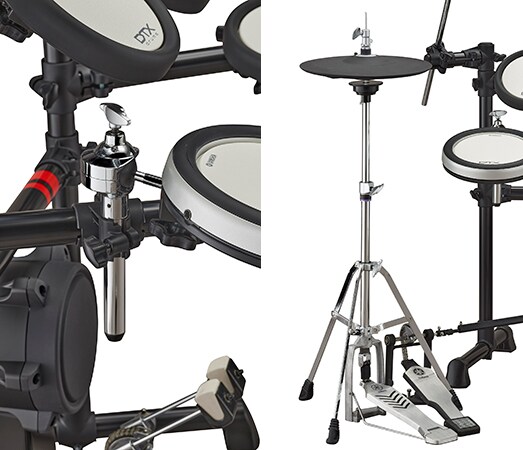

"Reliable Yamaha Hardware"
Yamaha's HS650A hi-hat stand is included with the DTX6K2-X and DTX6K3-X. All of the DTX6 Series also uses Yamaha's traditional ball clamps for snare pads, making fine adjustment of settings easy.
Yamaha is also one of the finest acoustic drum makers in the world, and its hardware is trusted by many professional drummers, for its strength, ease of use, and stability.
"An extensive range training functions to support drummers"
The best practice functions featured in previous DTX models are also found in the DTX-PRO. As well as the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. Beginners and professionals alike will find the DTX6 training functions a useful aid for daily practice.

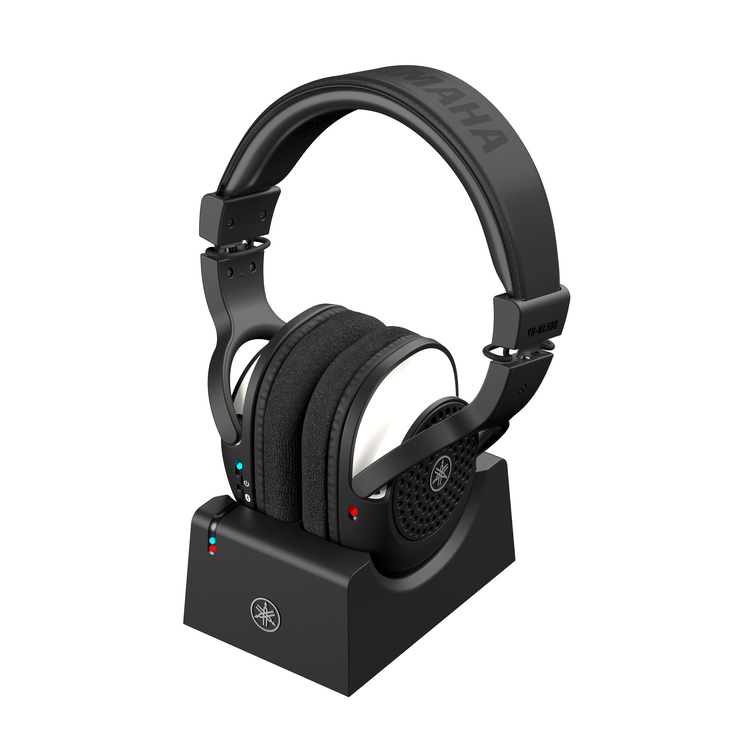

"Professional grade headphone amp"

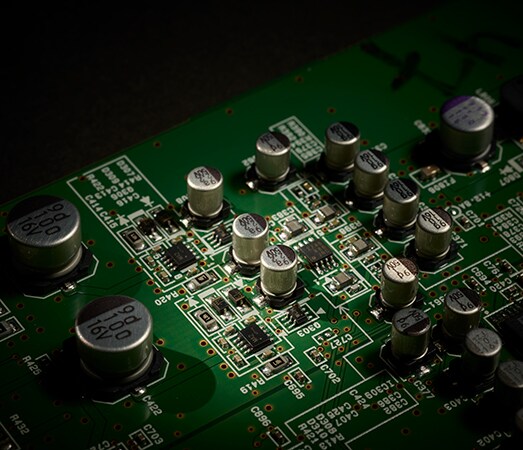

Yamaha realize that it is incredibly important that drummers can hear themselves clearly, so the DTX-PRO module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in realistic drum kit sounds.
"Includes Cubase AI"
The DTX-PRO module comes with a download code for the latest version of "Cubase AI" the powerful music production software.
By connecting the DTX-PRO to your computer with a USB cable, all recording, editing, and mixing tasks, that are found in modern music production, can be handled by the one software program.
Products

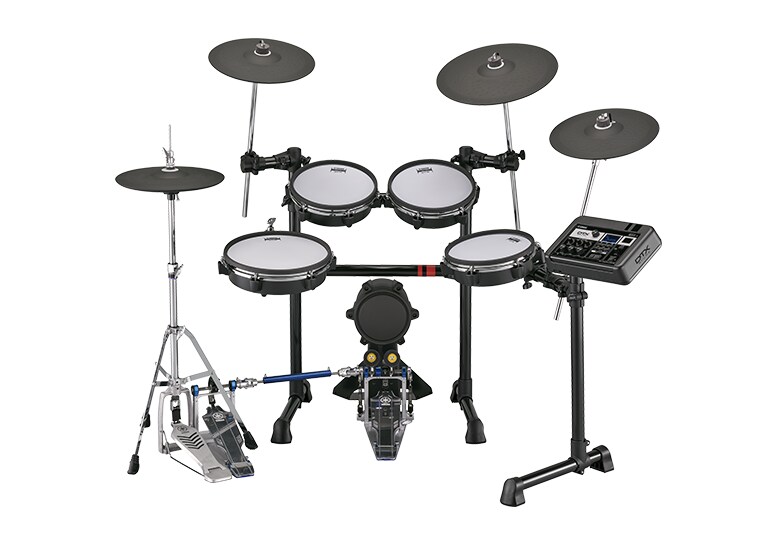

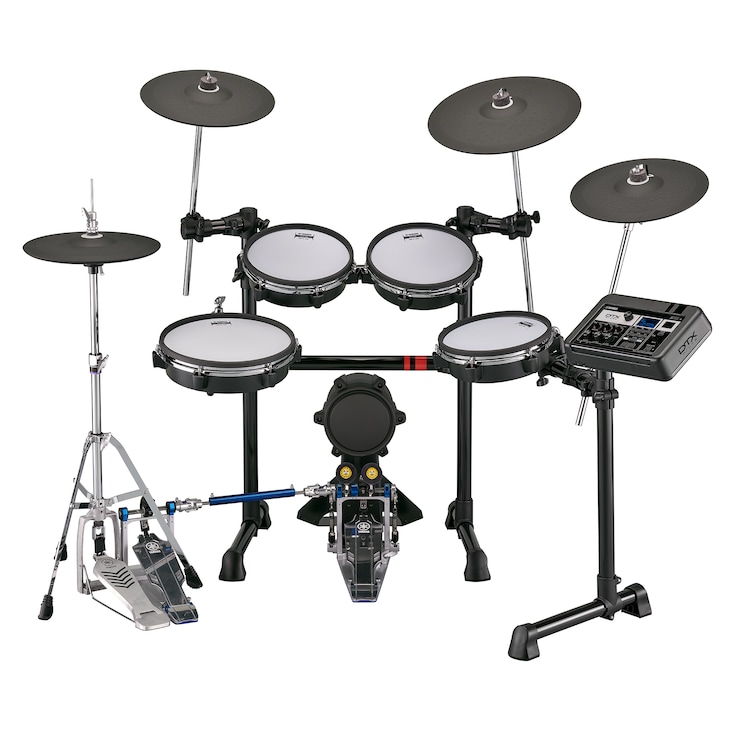

DTX6K5-M
-
New
- Faithfully reproduces real drum kit sounds and ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds

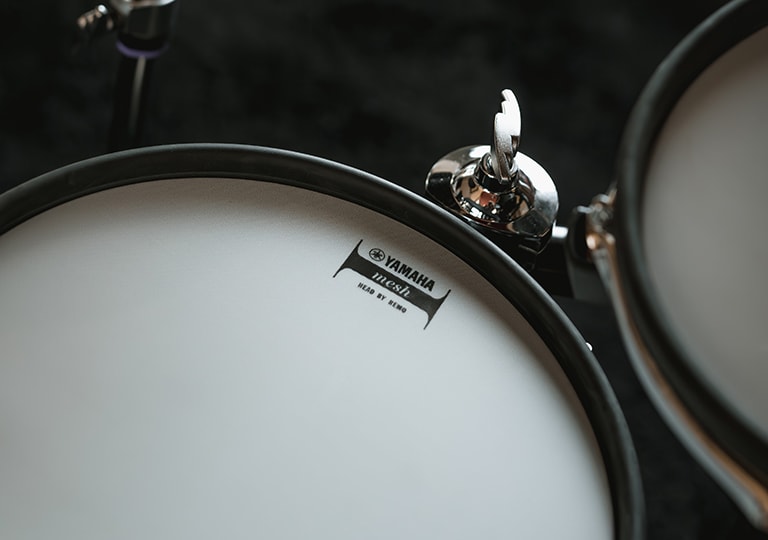

- Remo two-ply mesh heads with outstanding noise reduction, durability, and feel when hit, as well as great rebound, making them superbly comfortable to play are used on all pads
- 3-zone pads for the crash, and ride. The cymbals can be choked and muted. The ride cymbal is equipped with a hit point detection function (positional sensing)
- Yamaha system hardware is used for the included hi-hat stand and snare arm.

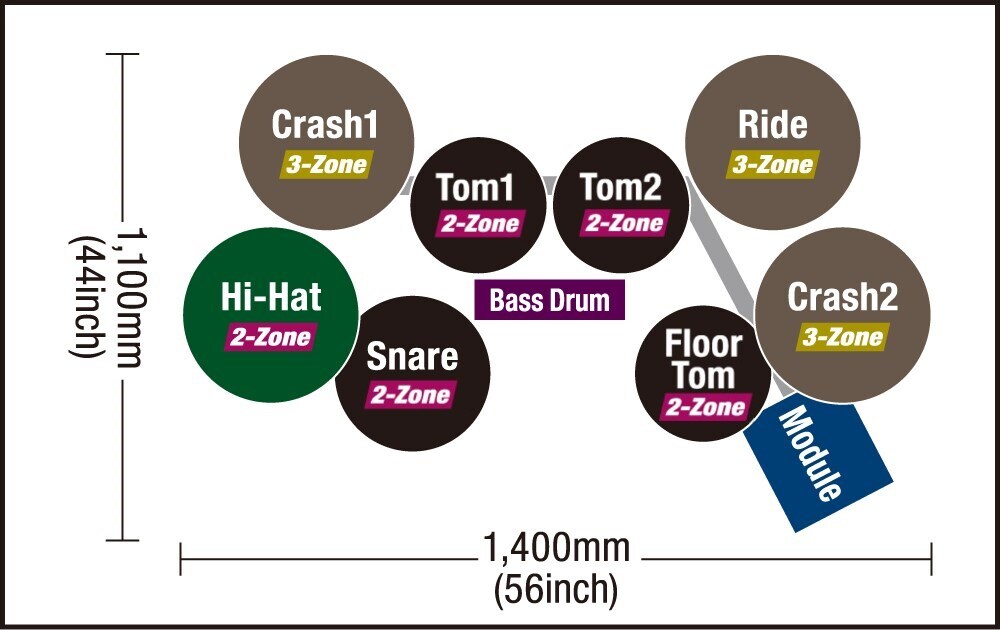

DTX6K5-M SPECIFICATIONS
| Module | DTX-PRO | |
|---|---|---|
| Pad | Snare | XP120L-M (12 inch Mesh pad with 2 zone) |
| Tom 1, 2 | XP100L-M (10 inch Mesh pad with 2 zone) | |
| Floor Tom | XP100L-M (10 inch Mesh pad with 2 zone) | |
| Bass Drum | KP90 (7.5 inch rubber pad with Multi layer cushion) | |
| Hi-Hat | RHH135 (13 inch pad with 2 zone) | |
| Crash Cymbal 1 | PCY135 (13 inch pad with 3 zone) | |
| Crash Cymbal 2 | PCY135 (13 inch pad with 3 zone) | |
| Ride Cymbal | PCY155 (13 inch pad with 3 zone) | |
| Hi-Hat Stand | HS650A | |
| Rack System | RS6 | |

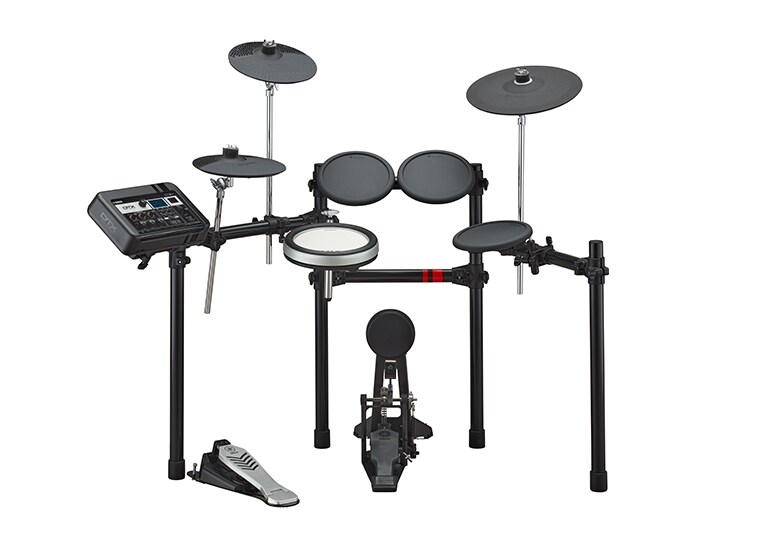

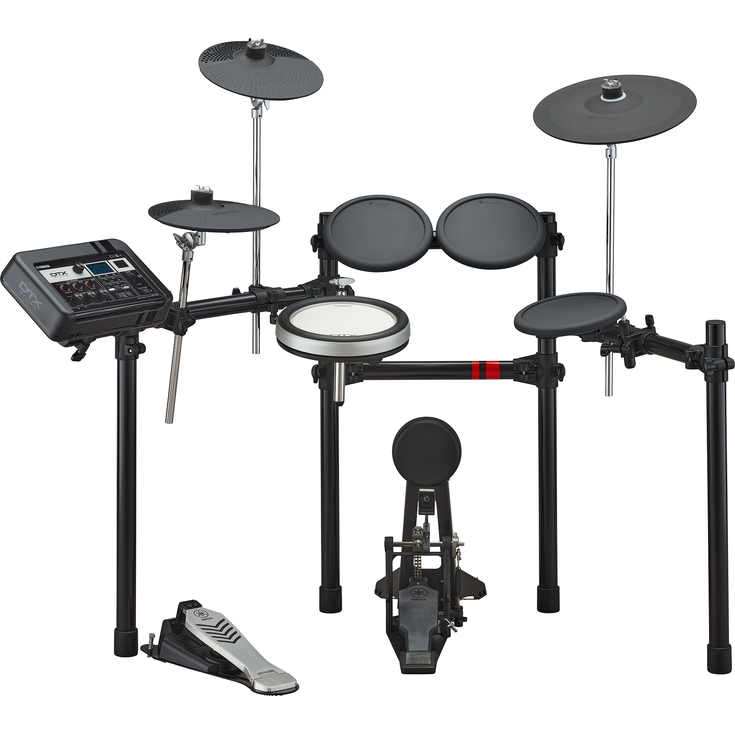

DTX6K-X
- Faithfully reproduces real drum kit sounds and ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
- Yamaha's original TCS head is used on the snare pad to achieve a realistic, natural feel and rebound that makes you want to keep playing
- 3-zone pads for the snare, and ride. The cymbals can be choked and muted. Ride cymbal equipped with a hit point detection function (positional sensing)
- Yamaha's traditional ball clamp is used for the snare clamp

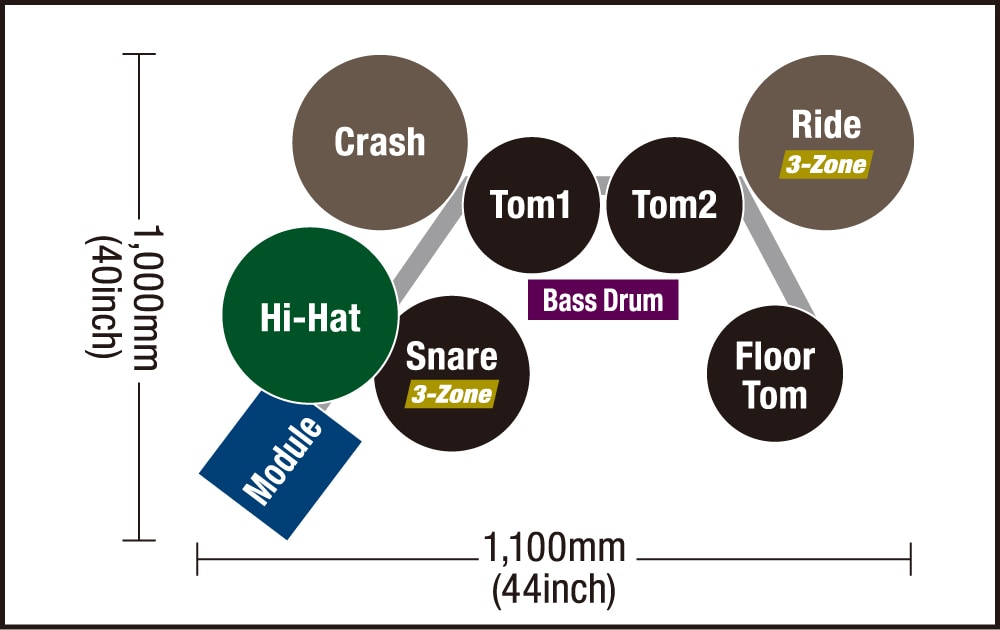

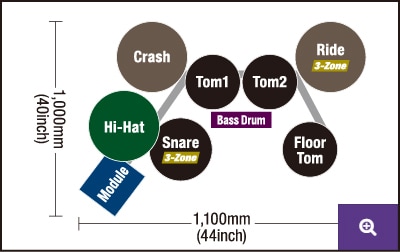

DTX6K-X SPECIFICATIONS
| Module | DTX-PRO | |
|---|---|---|
| Pad | Snare | XP80 (8 inch) TCS head 3-zone pad |
| Tom 1, 2 | TP70 (7 inch) Rubber head 1-zone pad | |
| Floor Tom | TP70 (7 inch) Rubber head 1-zone pad | |
| Bass Drum | KP65 (5 inch) rubber pad double foot pedal compatible | |
| Hi-Hat | 10 inch pad and HH65 Hi-Hat controller | |
| Crash Cymbal 1 | 10 inch pad with Choke ability | |
| Crash Cymbal 2 | - | |
| Ride Cymbal | PCY135 (13 inch) 3-zone pad | |
| Hi-Hat Stand | - | |
| Rack System | DTX6K-X Rack | |

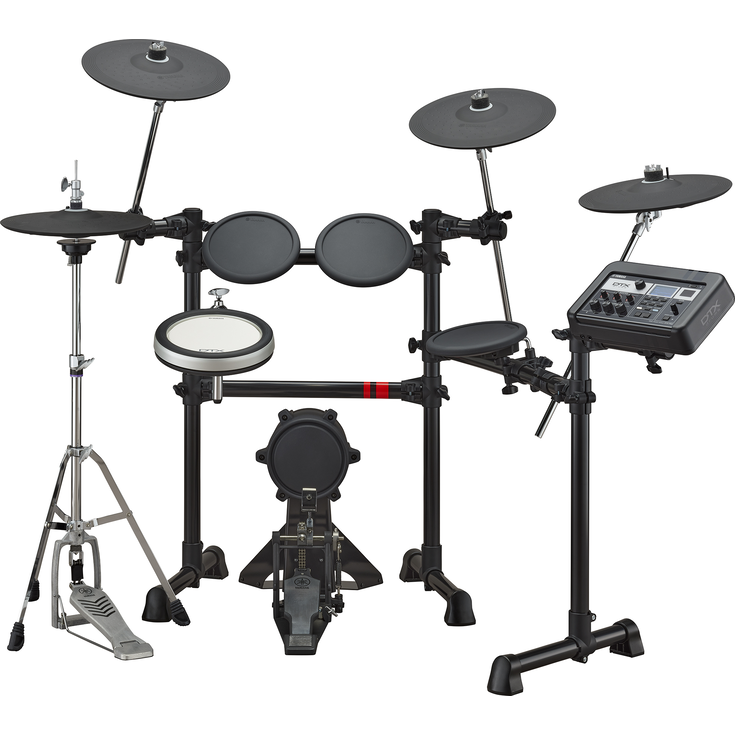

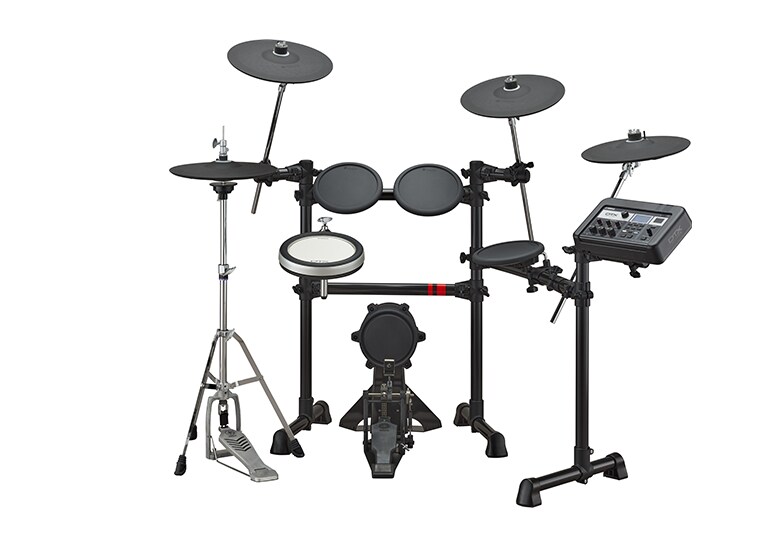

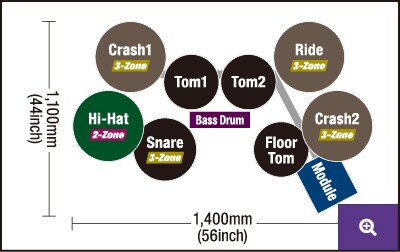

DTX6K2-X
- Faithfully reproduces real drum kit sounds and ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
- Yamaha's original TCS head is used on the snare pad to achieve a realistic, natural feel and rebound that makes you want to keep playing

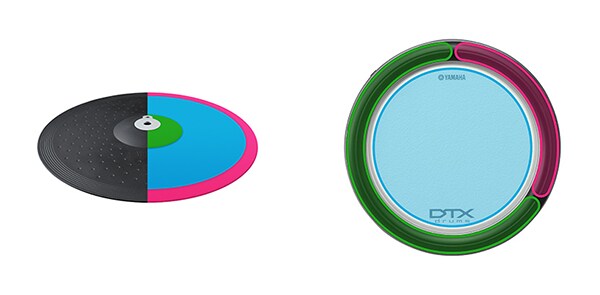

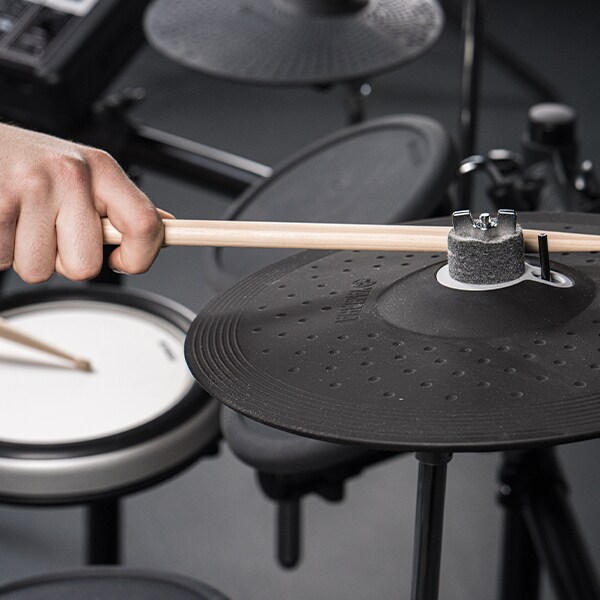

- 3-zone pads for the snare, crash, and ride. The cymbals can be choked and muted. The ride cymbal is equipped with a hit point detection function (positional sensing)
- Yamaha system hardware is used for the included hi-hat stand and snare arm

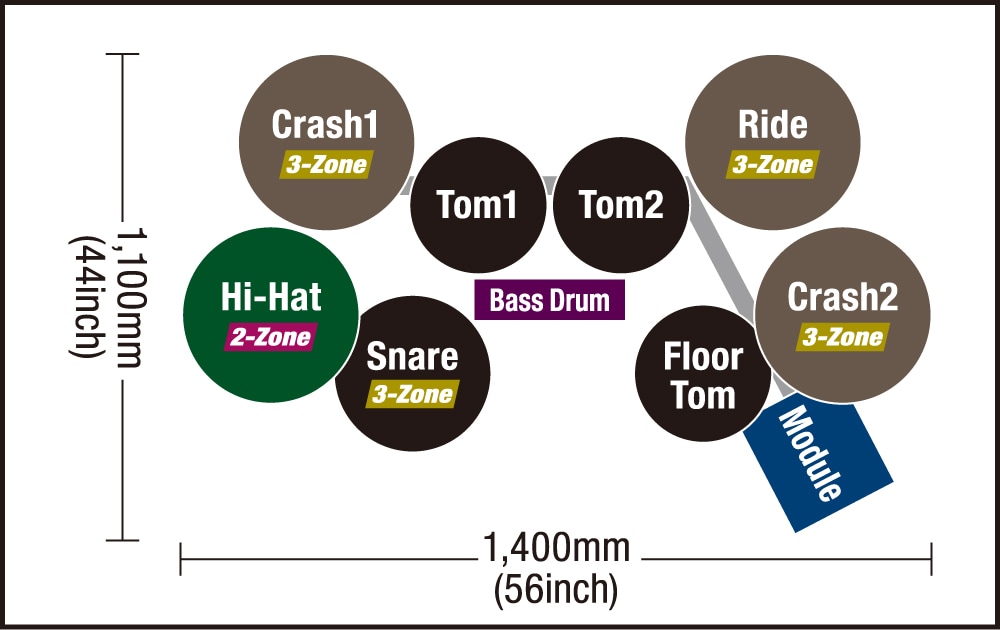

DTX6K2-X SPECIFICATIONS
| Module | DTX-PRO | |
|---|---|---|
| Pad | Snare | XP80 (8 inch) TCS head 3-zone pad |
| Tom 1, 2 | TP70 (7 inch) Rubber head 1-zone pad | |
| Floor Tom | TP70 (7 inch) Rubber head 1-zone pad | |

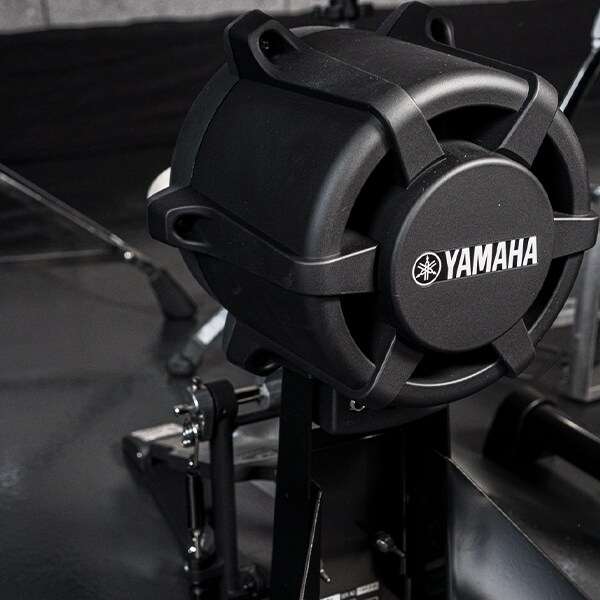

| Bass Drum | KP90 (7.5 inch) rubber head with Multi layer cushion | |
| Hi-Hat | RHH135 (13 inch) 2-zone pad | |
| Crash Cymbal 1 | PCY135 (13 inch) 3-zone pad | |
| Crash Cymbal 2 | PCY135 (13 inch) 3-zone pad | |
| Ride Cymbal | PCY135 (13 inch) 3-zone pad | |
| Hi-Hat Stand | HS650A | |
| Rack System | RS6 | |

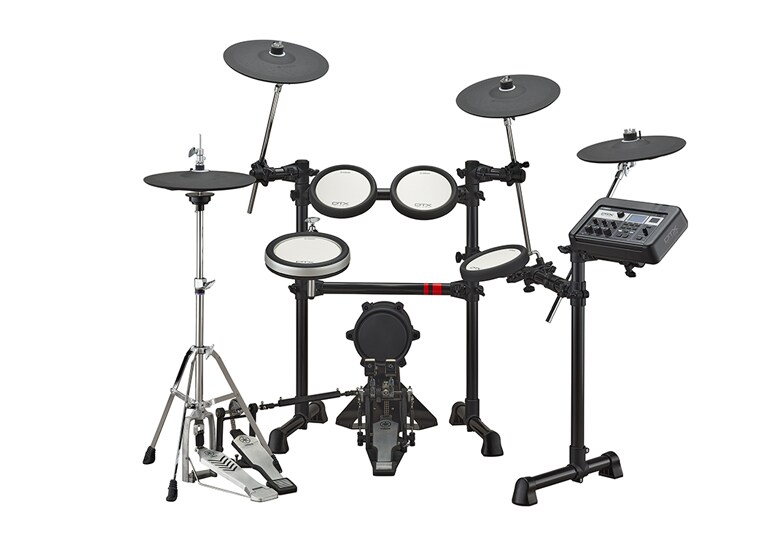

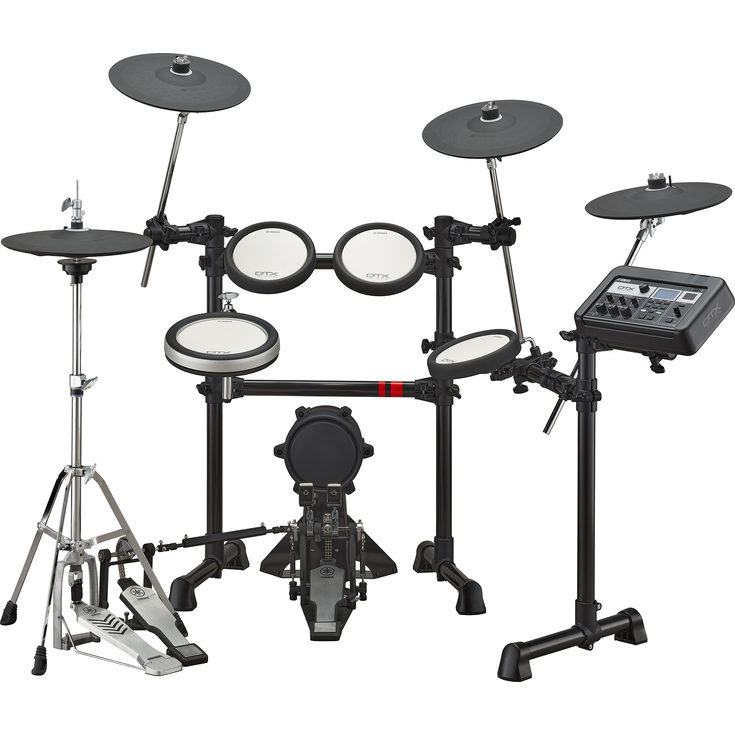

DTX6K3-X
- Faithfully reproduces real drum kit sounds and ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
- Yamaha's original TCS head is used for all pads achieving a realistic, natural feel and rebound that makes you want to keep playing
- 3-zone pads for the snare, crash, and ride. The cymbals can be choked and muted. The ride cymbal is equipped with a hit point detection function (positional sensing)
- Yamaha system hardware is used for the included hi-hat stand and snare arm

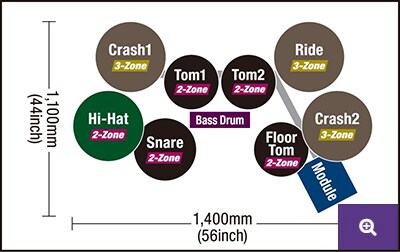

DTX6K3-X SPECIFICATIONS
| Module | DTX-PRO | |
|---|---|---|
| Pad | Snare | XP80 (8 inch) TCS head 3-zone pad |
| Tom 1, 2 | XP70 (7 inch) TCS head 1-zone pad | |
| Floor Tom | XP70 (7 inch) TCS head 1-zone pad | |
| Bass Drum | KP90 (7.5 inch) rubber head with Multi layer cushion | |
| Hi-Hat | RHH135 (13 inch) 2-zone pad | |
| Crash Cymbal 1 | PCY135 (13 inch) 3-zone pad | |
| Crash Cymbal 2 | PCY135 (13 inch) 3-zone pad | |
| Ride Cymbal | PCY135 (13 inch) 3-zone pad | |
| Hi-Hat Stand | HS650A | |
| Rack System | RS6 | |
Audio & Video
Artist Video
-
DTX6K-X | EL ESTEPARIO SIBERIANO
-
DTX6K2-X | KELI GUDJONSSON
-
DTX6K3-X | JOEL CASSADY
-
Rec’n’Share | JOEL CASSADY
Overview Video
-
DTX6K-X Overview
-
DTX6K2-X Overview
-
DTX6K3-X Overview
Kit Sound Sample
Main differences between DTX-PRO and DTX-PROX in terms of sound:
- Number of preset kits (DTX-PRO: 40, DTX-PROX: 70)
- DTX-PROX contains all 40 kits of DTX-PRO plus 30 kits.
- DTX-PROX has a higher definition cymbal sound from the weakest hit to the hardest hit, this makes it easier to add nuance to your playing and closer to the feel of playing live instruments.
-
AbsoHybMaple
The sound of the Yamaha Absolute Hybrid Maple series. The perfect modern drum sound.
-
Spiralizer
This kit features an effect which continuously moves the pitch up without ever reaching the top.
-
Bop Groove
A more jazz sounding kit with open drum sounds and thinner cymbals. Perfect for more acoustic styles.
-
SwedishMetal
A punchy, mid-scooped drum sound with lots of attack. This is a perfect processed drum sound for metal music.
-
Off The Hook
A highly processed, very electronic drum kit that punches through the mix.
-
Black Vinyl
A typical 1990's metal drum sound with reverb – very dark!
-
D-Funk
This kit features a very highly tuned snare for contemporary funk and similar styles.
-
Jet Reverb
This kit features a long reverb and a phaser effect to make the drum sound feel like it is swirling around you. Great on headphones.
-
26" BassDrum
The classic 1970's big open rock drum sound with 26” bass drum and oversized toms.
-
Steel Ring
A more rock sounding drum kit. The steel snare has lots of mid range ring to help it cut through music.
-
VintNashvlle
Typical of the drum sound found on country music in the 1960's and 1970's.
-
ModrnCountry
A contemporary acoustic pop drum kit with lots of attack.
-
ExcitedSnare
This kit has bright, high snare sound. The Presence effect on the [EFFECT] knob adds even more brightness and cut to the whole kit.
-
>Classic 8<
This kit features classic analog drum machine sounds.
-
Club Floor
This kit is more useful for hard dance music.
