EPH-52

EPH-52

Elegant design paired with natural reproduction of musical instrument sounds.

Focussing on audio quality for tight, well-defined bass and crystal-clear highs

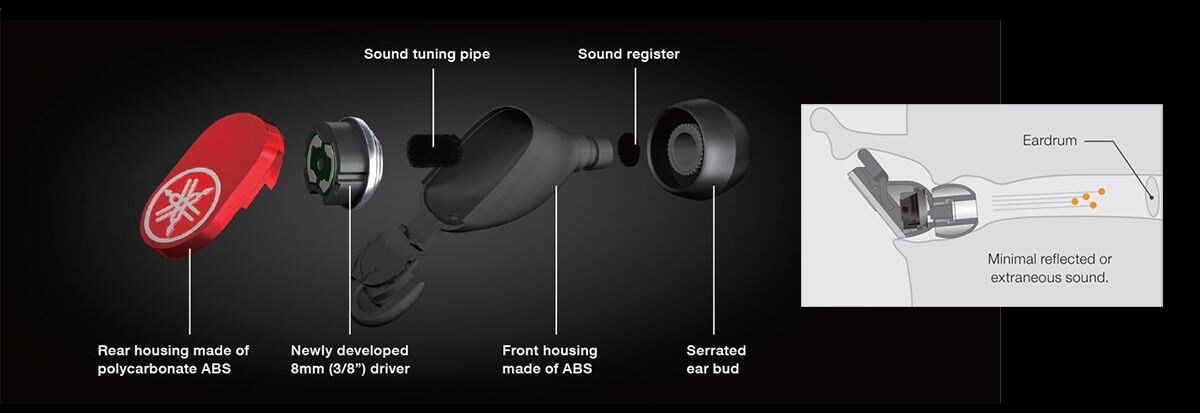

The housing of the EPH-52 Series has been designed with the driver and sound duct in a linear arrangement so that the sound from the driver is delivered directly to the eardrum. Materials with differing levels of hardness—ABS (acrylonitrile butadiene styrene) for the front section and polycarbonate ABS for the rear section—have been employed in order to reduce unwanted resonances, which cause muddiness. For precise audio reproduction, Yamaha equipped the series with high-grade earphones, finished the outside of the driver unit with a manganese alloy that ensures excellent damping performance, and designed the housing itself to control vibrations. Moreover, a sound-tuning pipe that controls unnecessary peaks in the high frequency register is built in to the unit. This keeps the bass sounding taut, which makes for a more pleasurable listening experience, and reproduces the high register with exceptional clarity so that all of nuances of the musical instruments can be heard clearly.

Manganese damping alloy keeps unwanted vibrations under control

The EPH-52 Series makes use of a special alloy primarily comprised of manganese. The alloy itself absorbs vibrations, and keeps the vibration absorption of a broad range of frequencies under control. Since it is a non-magnetic material, it has no effect on the driver magnet and effectively improves vibration damping performance.

Specially designed 8mm (3/8”) driver and diaphragm shaped with a high-precision tangential edge

Yamaha’s newly developed driver unit contains a highly magnetic neodymium magnet. Moreover, the diaphragm is designed with a high-precision tangential edge, and the shape of the edge and surface area of the domed vibrating section are set up to ensure optimal movement of the diaphragm according to the volume level during playback. This allows for compact earphones that can reproduce a wide frequency spectrum while delivering a powerful sound.

Serrated ear buds with superb fit and high sound quality

The ear buds are made of two types of silicon material—one hard and one soft. The sound passage section that uses hard silicon combines flexibility and strength through serration. It retains its shape even when inserted into the ears and fits perfectly to the shape of the ear canal. In addition to creating a comfortable fit, the ear bud also prevents deterioration of sound quality due to sound leakage.

Compact housings equipped with acoustic port that enable rich and clear bass reproduction

The housing design also optimizes flow resistance in the operation of the diaphragm due to the acoustic port, which functions as a vent. The housing enables precise, rounded bass reproduction.

Simple design aesthetic with high-quality color finish

The EPH-52 series is characterized by a simple design decorated only with Yamaha’s distinctive tuning fork logo on the outer flat side of the housings. Each model is finished with an elegant and refined gloss coat, making these earphones an accessory that you will want to use and treasure for years to come. Choose from three beautiful colors.

Yamaha’s 2Way Ear Supporter: Choose the style that fits you best

Due to their compact size, the EPH-52 series earphones can be worn in comfort. What’s more, Yamaha’s 2Way Ear Supporter allows the earphones to be worn in two different ways – either with the cord over the ear for a more securely fixed position (as shown in style 1), or in the regular way (style 2). The 2Way Ear Supporter is made of a flexible elastomer material, ensuring a snug fit in the ear canal, enabling you to listen to music comfortably and carefree.

Serrated cord less prone to tangling

The surface of the cord is serrated to reduce friction. This not only reduces cord tangling, it also helps realize high-quality sound through the reduction of friction noise through the cord. The serrated cord also allows you take out your earphones and remote control neatly while listening or carrying for greater ease of use.

The colors and finishes shown may vary from those on the actual products.
