Colors / Finishes

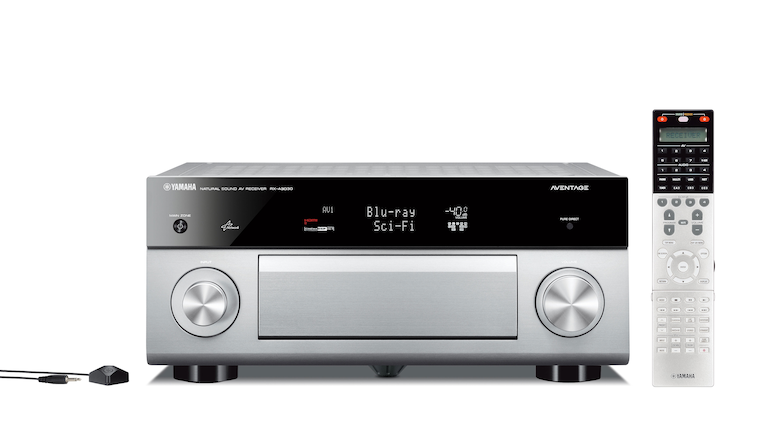

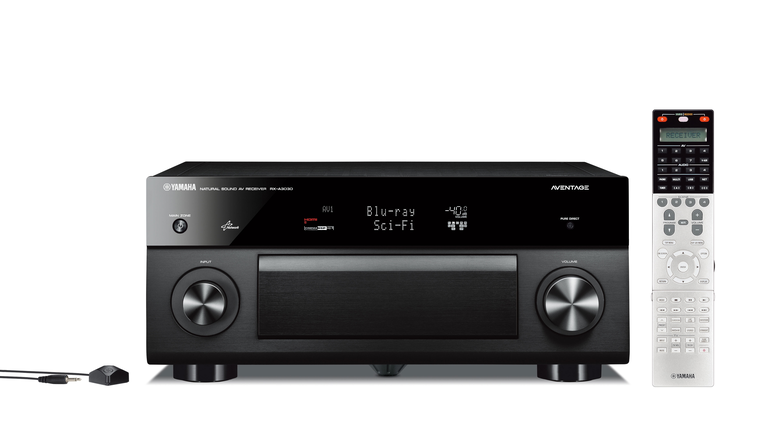

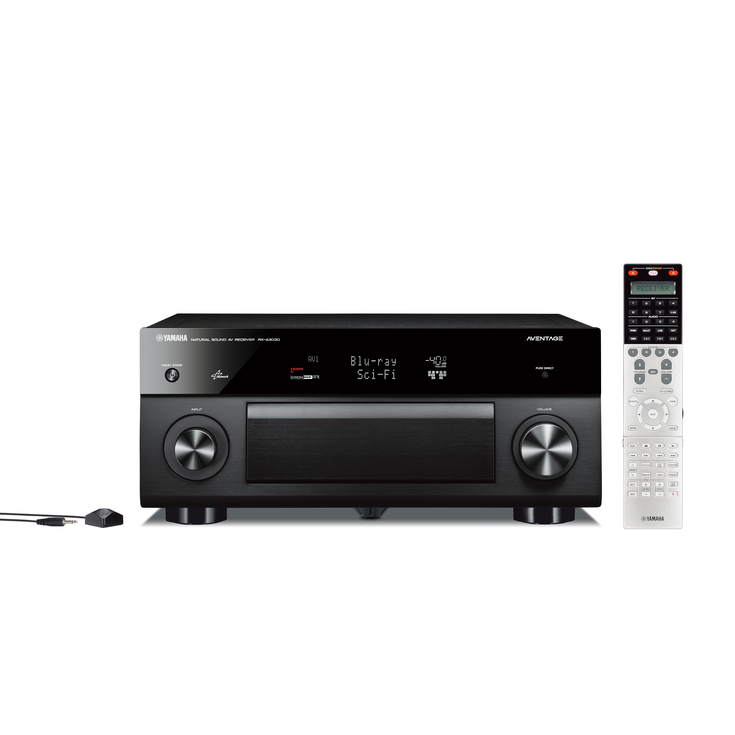

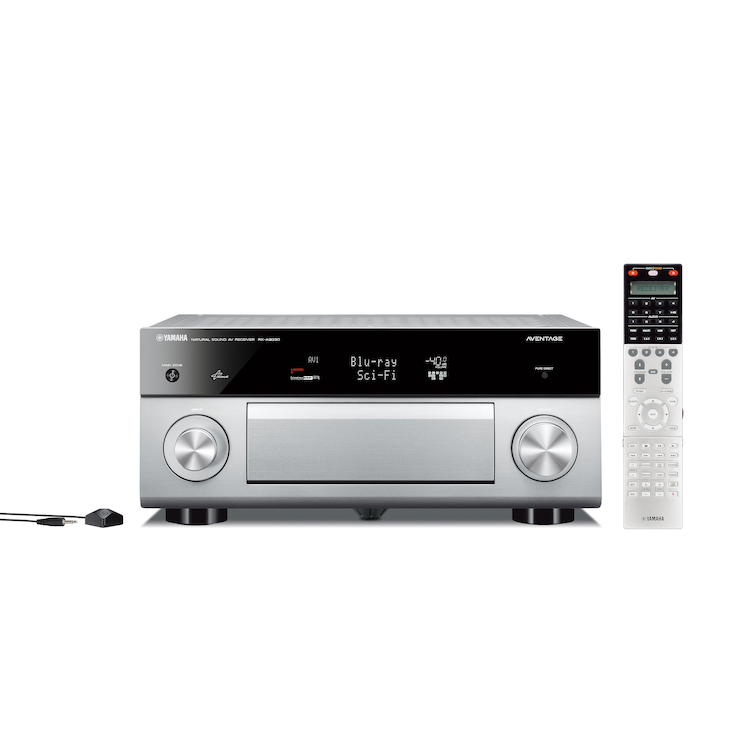

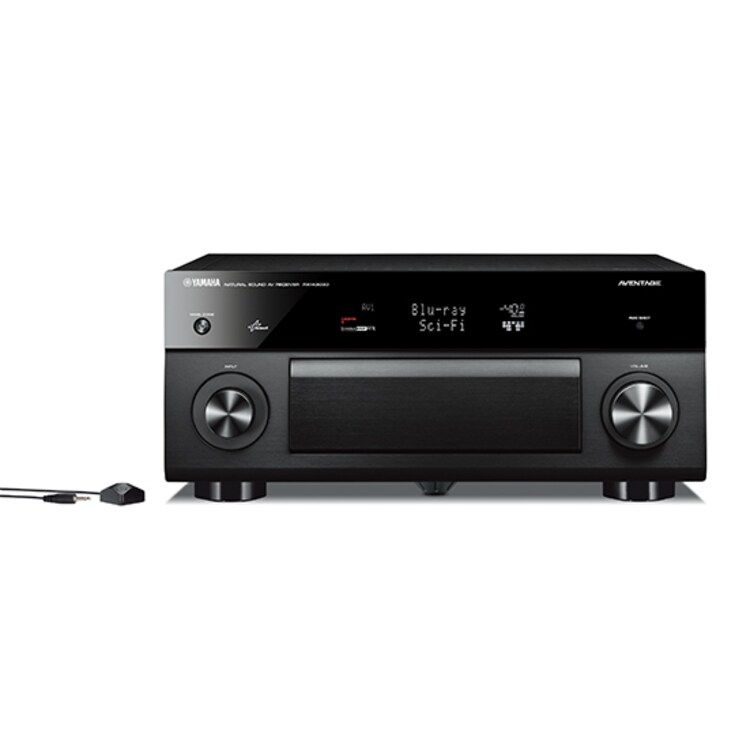

AVENTAGE AV Receiver with 11.2ch expandability and CINEMA DSP HD3 for the ultimate in surround sound performance. Outstanding features include super-high quality ESS DAC, new Yamaha video processing engine, Advanced HDMI Zone Switching, MHL support and HDMI with Ultra HD (4K) upscaling.
- AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
- CINEMA DSP HD3 expands the sound field vertically for more thrilling and realistic surround sound
- Ultra-high performance DACs for superior sound quality
- Aluminium Front Panel Offers Visual and Aural Benefits
- Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
- H-shape cross member frame and rigid bottom frame / double bottom construction
- 9-channel powerful surround sound and full discrete amp configuration
- --- 230 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1 ch driven [European Model])
- --- 150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06 % THD, 2 ch driven)
- --- 230 W per channel (8 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
- MHL supports full HD video and audio from mobile phones and portable devices
- Network functions such as AirPlay, Napster®* music streaming service (*Music service availability varies by region.)
- AV Controller app for operating various functions from a smartphone or tablet
- FLAC or WAV 192kHz / 24-bit audio playback
- High-resolution Music Enhancer further heightens musicality from the original content
- Advanced HDMI Zone Switching allows unprecedented AV switching to multiple zones
- HDMI (8 in [1 on front] ) / 2 out) with 3D and Audio Return Channel
- 4K Ultra HD Pass-through and Upscaling
- YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point / speaker angle measurement
- Yamaha video processing optimises video content
- Full LED Backlight Learning and Preset Remote Unit
- Versatile Zone control such as Zone 2 / 3 / 4 on / off, Zone GUI, Zone 2 / 3 video assign and Party mode
- ECO mode operation for about 20% less power consumption
* Specifications are subject to change without notice. The colors and finishes shown may vary from those on the actual products.
