Overview

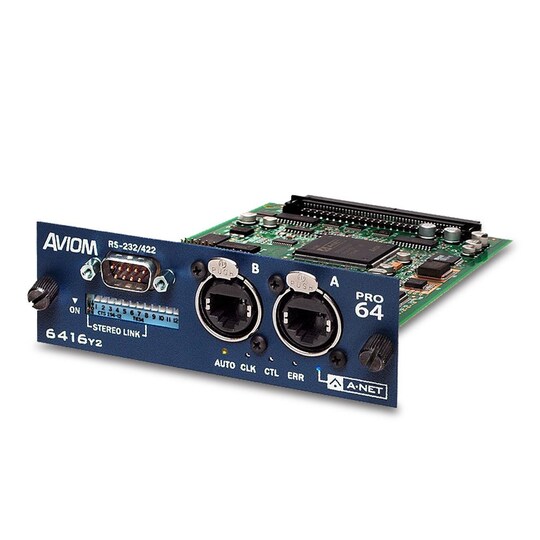

The Aviom 6416Y2 A-Net Card supports up to 16 channels in and 16 channels out simultaneously, depending on the Yamaha host product's capacity and the selected system sample rate. Multiple cards may be used in a single host device providing up to 64 channels in and 64 channels out simultaneously. Inputs and outputs may be assigned to one of four A-Net network slot banks, while input channels may be individually activated as needed.
- Up to 16 channels in and 16 channels out simultaneously
- Variable sample rates: 44.1/48kHz or 88.2/96kHz
- Robust clocking allows simple consoleto-console digital connections
- Remote control gain for up to 64 channels of 6416m preamps directly from the Yamaha console
- RS-232/RS-422 Virtual Data Cable I/O (compatible with Yamaha remote control protocol)
- Stereo Link per channel pair for Aviom Pro16® Personal Mixers
